Automotion LC4BO12002 digital servo drive LC4 series

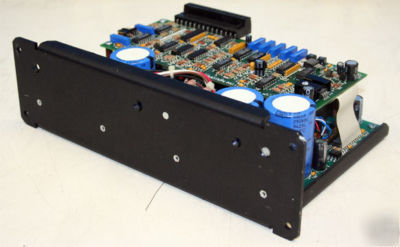

Automotion LC4BO12002 Digital Servo Drive LC4 Series
160 Volts DC, 8.0 Amps, 350 Watts
The LC4 Series, our popular line of PWM voltage mode runs directly from a 115 Volts AC, single phase line. No additional bulky, expensive DC power supplies or isolation transformers are required. Totally self contained, the LC4 is simple to set up and operates with any 3-phase brushless DC motor designed for high voltage (160 Volts DC), three phase operation.
* Automatic current limiting
* Magnetically/optically isolated output stages
* External start/stop, forward/reverse, and dynamic braking
* 115 VAC line input; no transformers needed
* Variable acceleration/deceleration
* Torque (current) output (optional)
* Dual speed selection (electronic gearing)
* Quite, high efficiency PWM switching
* Selectable commutation code
* Built-in single quadrant closed loop speed control
