Doppler radar microwave motion sensor 24GHZ IP65 alarm

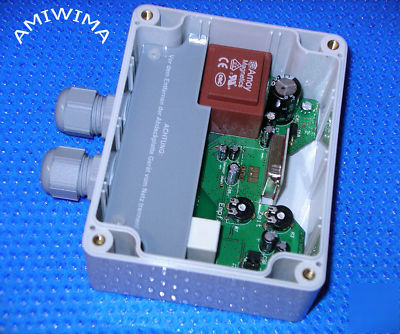

You get a new microwave motion detector with 24 GHz K-band doppler radar transceiver with integrated transmit and receive antennas for a typical range of 10 m. The detector operates with 230 Volts AC and can be placed either in- or outdoor due the waterproofed IP 65 enclosure. The sensitivity can be adjusted and the signal output is done by a relais to be able to switch on and off AC and DC loads. A sector of 80 x 30 degrees can be covered with the integrated standard microwave frontend. Radar detectors can be used even through glas or plastic so it is ideal for applications where the sensor should not be seen.
UNIVERSAL DOPPLER RADAR MODULE 24 GHZ IP65 AC RELAIS
Electrical SPECIFICATIONS DOP-24G-RAC @ 25 C:
transmit frequency: 24.125 GHz
RF output power EIRP: 17 DBm MAX, 50 MW Typ.
DETECTION ANGLE: EL 30 , AZ 80 TYP. *
DETECTION RANGE: 10 M MAX. , 33 feed
ALARM OUTPUT: RELAIS ON/OFF 230 V @ 16 A
RELAIS DUTY CYCLE: 5 SEC. TO 5 MIN. TYP.
supply voltage: 230 VAC, 50 HZ
ENVIRONMENT: PLASTIC BOX IP 65 OUTDOOR
operating temperature: -20 TO +60 C
SIZE: 5.9 x 3.5 x 2.2 INCH MAX.
* For LONG RANGE APPLICATIONS OTHER RF-FRONTENDS cAN BE supplied on request
