Warn works 4700 12V dc powered winch 4700DC 4700 pound

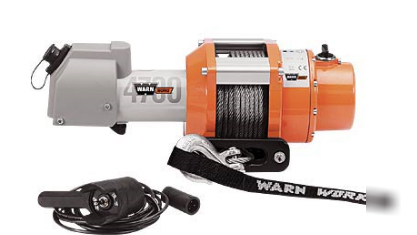

WARN Works 4700 12V DC Powered Winch 4700DC 4700 Pound
Make work even easier with a higher capacity winch. The WARN Works 4700 takes the 3-stage planetary gear train and puts it to work with a 1.9 hp permanent magnet motor. The brake is a mechanical and dynamic system that holds the full rated load. The 12ft. all-weather remote control plugs into an industrial contactor control pack. The wires to the motor and contactor are protected by a plastic housing.
* Gear Train 3-stage planetary gears
* Clutch Lever actuated sliding ring gear
* Braking Dynamic and mechanical
* Rope Size L x dia. (ft. x in.) 60 x 1/4
* Battery Leads Two 6in. x 6-gauge cable
* Mounting Bolt Pattern L x W (in.) 4 1/2 x 4 3/32, 4-hole
* Dimensions L x W x H (in.) 17 11/16 x 6 9/32 x 6 1/2
* Highest capacity DC-powered winch
* Power Requirements: 12V DC (300 Amp minimum)
* Unit is not rated for lifting
* Misapplication voids warranty
* Drum Dimensions: 2.5in. x 3in.
