9" x 48" american radial arm drill,tap,bore,box table

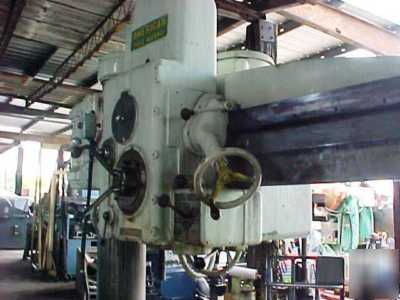

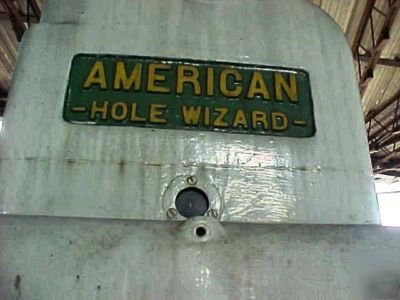

9" X 48" AMERICAN RADIAL ARM DRILLING,BORING AND TAPPING MACHINE

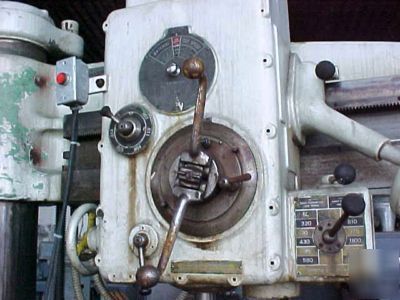

- Manual Clamping ... Head to Arm
- AIR Clamping ... Arm to Column
- Spindle Clutch for Instant Forward & Reverse

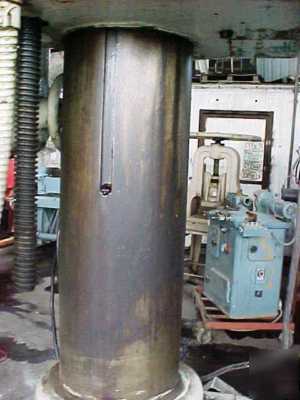

SPINDLE HAS NO SCORE MARKS AND RUNS TRUE,COLUMN HAS SOME SCORE MARKS BUT DOES NOT EFFECT OPERATIONS

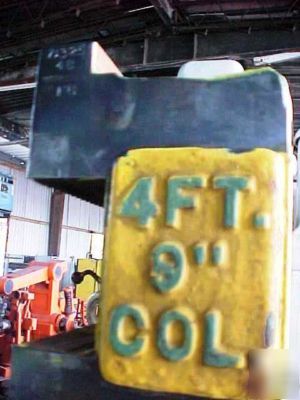

* Column Diameter:........9
Dist Column to Spindle:.48
Dist Spindle to Base:...14 3/4 - 55-1/4
Spindle Travel:.........12
Spindle Taper:..........# 4 MT

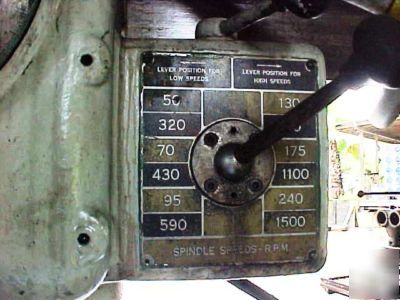

Spindle Speeds:.........(12) 70 - 1500 RPM

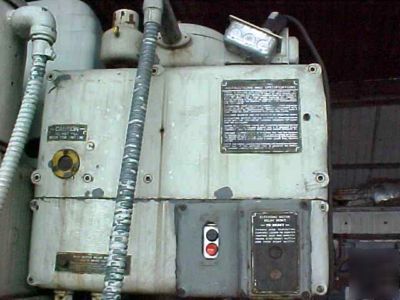

Motor Size - Voltage:...5 HP - 220/440V - 3PHS
Base Dimension:.........30 x 76
Weight:.................8000 LBS

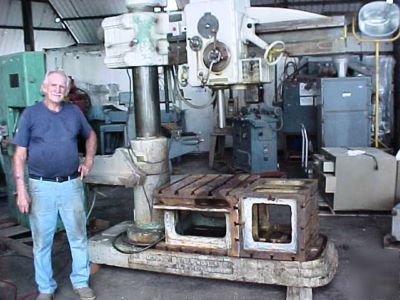

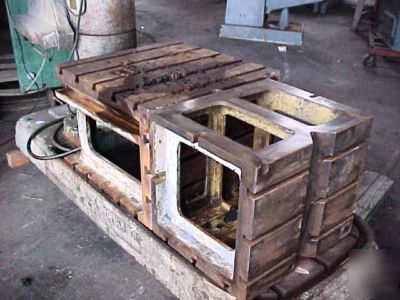

* COMES WITH 1 BOX TABLE 24 X 48. ANY QUESTIONS ? CONTACT GERRY BY E MAIL OR (***)-547-0616
