> New 240W 24V 10A single output switching power supply
New 240W 24V 10A single output switching power supply

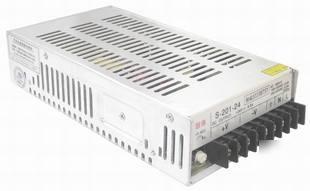

NEW 240W 24V 10A Single output Switching Power Supply
* Low cost, hogh reliability
AC input voltage range........... 88~132VAC / 176~264VAC auto-sensing
AC inrush current .................. Cold start, 15A at 115VAC, 30A at 230VAC
DC adjustment range.............. 10% rated output voltage
Overload protection .............. 105%~135% hiccup mode, auto-recovery
Over voltage protection.......... 115%~150% rated output voltage
Setup, rise, hold up time......... 1000ms, 20ms, 36ms at full load and 230VAC
Withstand voltage ................. I/P-O/P:3KVAC, I/P-FG:1.5KVAC, 1 minute
Working temperature.............. 0-50OC@100%, -10OC@80%, 60OC@60% load
Safety standards .................. UL60950-1, TUV EN60950-1 approved (7.5V design refer to EN60950-1)
EMC standards .................... EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204
Connection ........................... 7P/ 9.5mm pitch terminal block with cover
Packing ............................... 1.2kg ; 12pcs / 15.3kg / 0.78CUFT
* 1x Switching Power Supply
