New 10 w x 8 t x 10 d crossdraft paint spray booth

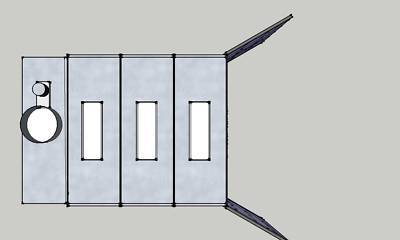

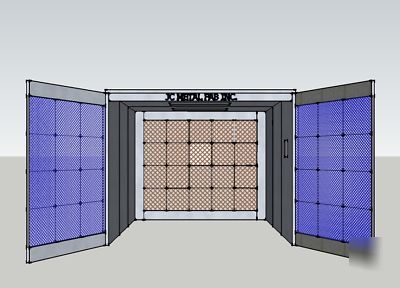

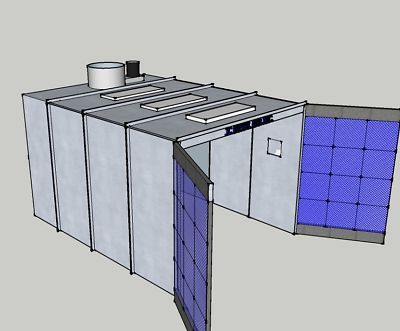

10' WIDE CROSSDRAFT PAINT SPRAY BOOTH
Built to order-usual build time is 2-3 weeks
Working area =9'8"w X8't X 10'd
Overall size =10'w X 8'-2"t X 13 d
Fan size = 24" with 2hp three phase motor
Filters = (16) 20x20 filter cells
(3) 4 4bulb florescent light fixtures mounted behind tempered glass
(1) 24" tube axial fan 2 hp three phase motor tefc non sparking blade
(1) set filtered product doors " (2) 5' doors "
24 dia exhaust stack 4 long with companion flanges
24 dia auto damper, 18 ga galvanized with companion flange
24 dia pitched roof curb with storm collar
24 dia flat roof curb with storm collar
Control panel for fan motor and lights
