Minolta tv-2130 tv-color analyzer ii w/probe and case

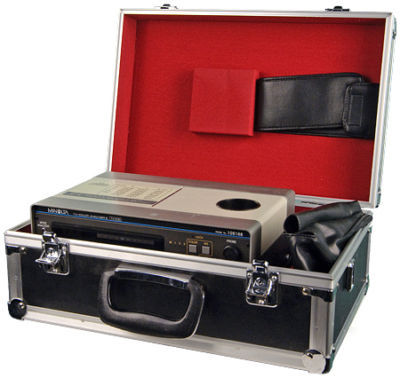

Minolta TV-2130 TV-Color Analyzer II w/Probe
Combining state-of-the-art electronics technology with Minolta s many years of experience in light metering and colorimetry, the TV-Color Analyzer II enables objective white-balance measurement and adjustment of monitors in TV production lines and broadcast studios. A chroma mode provides color readings in Yxy units for quick memory input of any desired white standard or reference color, eliminating the need to use troublesome white masters and comparators. Analyzer mode allows users to measure and independently adjust the red, blue, and green beam intensities of any CRT, thus simplifying white balance adjustments.
Measured values are processed by a microcomputer and displayed on both digital and analog displays. The digital display shows precise values for chromaticity and luminance as well as primary-beam intensities, and the analog display can be used to check color difference and gamma tracking.A built-in memory holds as many as four white standards or reference colors, and also permits storing the phosphor characteristics of up to four CRTs for use in analyzer mode. In addition, a switch can be set to display luminance readings in either foot-lamberts or nits, and a data output terminal permits interfacing with a data processor or computer.
Luminace Range: 3 - 999cd/m (1 - 290 ft-L)
