> Sale flexible endoscope borescope microscope hs-FP73KSL

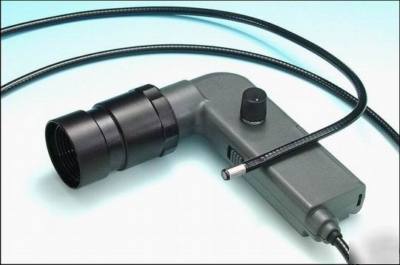

Sale flexible endoscope borescope microscope hs-FP73KSL
US$747>>>>>>US$489 discount sale
Set included one mirror, 90 / 120 degree!
Unrivalled 0.23" (6mm) and flexible cable - high quality image with 7400 Pixel - Industrial Endoscope Set HS-FP73KSL in quality Aluminium-Case
The Industrial Scope has launched on the Japanese Market as High-End Product of the successful Coden-Scope Serie. It is a professional Scope with 7400 Pixel for Industrial use.
Please compare the specifications with the competitors. Especially the lihgt source (here dimmable LED) and the high quality, flexible spiral cable. The cable is extra robust because protected by an stainless steel spiral under the water and oilproof cover.
A dimmable LED is necessary when you want to save the pictures at your digital camera or camcorder. Also it protect your eyes when you choose the right light-power.
Lens and light-source are directly integrated in the flexible cable !
There are 15 small lightguides around the lens. So an even illumination is guaranteed.
Bright white LED with only one
long life-light weight (90 hours contineous light/ 1 battery) low-level consumption compared to halogen
and yellow-light no diminishing
of the light power during the life-time !
50.000 up to 100.000 hours durability
Nearly no heat-expansion (cold-light)
high schock and vibration-proof LED
View angle: 50 degree for a larger field of view
Magnification: 400% for an optimized field of view
Ultra small high quality lens : 0.06 inch (1.5 mm)
Focus area: 1.18 inch - infinite (30 mm - infinite) or 0.2-0.6 inch ( 5-15mm ) please choose one model.
Super thin cable: only 0.23 inch (6 mm) diameter
high quality and real industrial grade with stainless steel spiral protection.
The (nearly) infinite range of applications:
Inspection and Maintenance of machines, engines circuitboards, drill holes,
water pipes tubes , leaky parts on cars, nestholes, motors and tanks, bus,
trucks, tractors, motorcycle, tools, gearwheel controls, to solder/control switchboards, model-making, borehole, turbines, aircrafts, stoves, chimneys, boiler, air conditions,
For constuction-ingeneers to check basic structure of buildings without big interferferences.
Aid by installing heatig systems.
Looking behind tilings only trough a 0.23 inch (6 mm) bore !
Exploration of beehives, wasphives, nests, insect-gangways, mole/mouse
gangways/nests/hills, varmint-plagues or animal-preparations.
Inside aquariums discovering fish-caves in darkness....
Applicable in all areas thtat are narrow with many corners and angles, difficult
to see or dangerous. Without cost and time-consuming disassemblies.
Instruction manual in English
Fiber Cable Length: 79" (2000 mm), waterproof, oilproof , Spiral Hard Tube
Bending radius: 1.9 inch (50 mm) 3.2 inch (80 mm) is safety level on use.
Diameter of cable: 0.23 inch (6 mm)
Lense Type: Ultra small high quality Rod Lens with 0.06 inch (1.5 mm)
Eyepiece: with high quality optical glass-lens.
Light Source: bright white LED
Dimmer: infininitely variable
Diameter of the Lense: 0.06 inch (1.5 mm)
Pixel: 7400 pixel trough hi-quality fiber possible over meters of cable
Focus area: 1.18 inch - infinite (30 mm - infinite) or Macro focus (5-15 mm)
Magnification level: 400% optimized for the best field of view
Mirrors 90 + 120 degree can be attached. Please choose your favourite mirror. One is included in this set. 90 degree or 120 degree
Temperature resistance: between -23 and +140 F (-5 bis + 60 C)
Electricity: only one Standard 9V Block Battery for 90 hours contineous working
Main Material: Anti-bacterial ABS resin, Glass, Stainless Steel
The product is once opened but not used at all.
