> Termaline coaxial resistor 500 watt model 8201

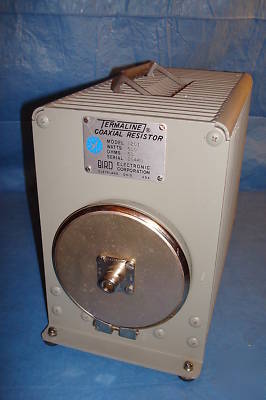

Termaline coaxial resistor 500 watt model 8201
The Model 8201 TERMALINE Load Resistor is a portable, self-contained general purpose 50 ohm coaxial transmission Resistor.
List Price is: $596.00 NEW from Bird Electronics.
The Model 8201 Termaline Load Resistor can absorb and dissipate up to 500 W of RF power continuously over a frequency range of dc to 2500 MHz. It will show a maximum VSWR of 1.1 to 1.0 from dc to 1000 MHz and 1.25 to 1.0 from 1000 to 2500 MHz
The Model 8201 is 16-13/16 inches L x 5-15/16 inches W x 8-1/2 inches H (427 x 151 x 216 mm).
The Model 8201 is a passive device that is self contained and do not require a source of
power or utility service to perform their function, other than the RF input power.
