Tektronix TDS744A 4 channel color digital oscilloscope
Tektronix TDS744A 4 channel Color Digital oscilloscope
Fro Sale is a Tektronix TDS744A 4 channel Color Digital oscilloscope

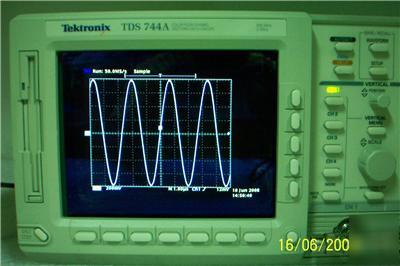

Power on self test passes (see picture)
This unit also comes with the following Options:
Opt. 13: Add RS 232C and Centronics hardcopy interfaces.
Opt. 1F: Add 3.5 inch floppy disk drive.
Opt. 2F: Extended waveform math; FFT, Integration, Differentiation.
There is a crack on the back legs top and bottom and a small gouge on the top (see pictures)
This unit comes with front cover and power cord.
The Tektronix TDS744A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS744A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the TDS744A
Programmability/Connectivity of the TDS744A
