> Schneider xenoplan 1.4/17-0513 c mount objective lens
Schneider xenoplan 1.4/17-0513 c mount objective lens

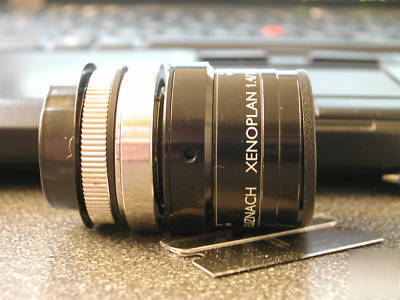

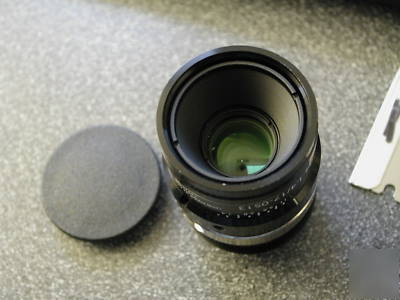

* Schneider Xenoplan 1.4/17-0513 C Mount Objective Lens (Art 41831)

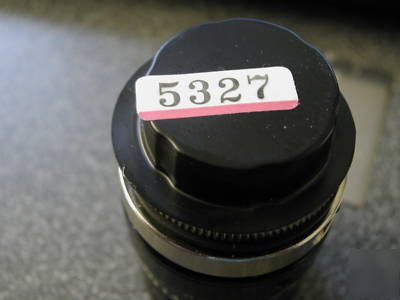

* My item 5327 (Schneider sells these for $1017 list price)

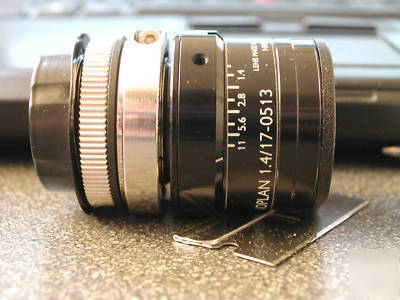

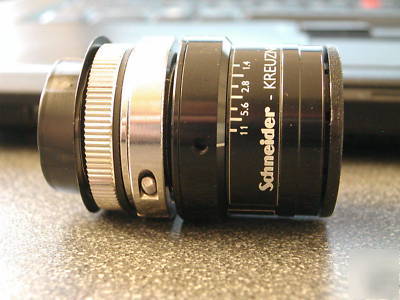

* Extender Ring 9.17mm (Silver Knurled Ring on the rear side of the lens)
* Looks like this may be missing knob that is shown on the drawings below.
The Xenoplan 1.4/17mm C-Mount Lens covers a 2/3 format sensor with an 11mm image circle. It is broadband coated and corrected for uninterrupted imaging from 400-1000nm (Visible through Near IR spectrum). The Schneider Xenoplan Series of lenses offer outstanding optical performance and a solid mechanical design that is able to withstand harsh environmental conditions. Other key features include:
* Precise focusing via fine internal thread
* Click-stop free iris setting
Designed to accommodate up to a 2/3 sensor, Schneider s Color Corrected VIS-NIR lenses do not need to be refocused when switching between 400-700nm (VIS) and 700-1000nm (NIR). These lenses can be used over the complete spectral sensitivity range without a focus difference. Schneider s Standard VIS-NIR lenses can accommodate up to a 1.3 sensor (22mm image circle) but will need to be refocused when switching between VIS and NIR wavelengths.
The result of an image processing is limited by the quality of the image on the camera sensor itself. Besides the illumination, the lens is therefore the most crucial component of a machine vision system.
The lens must not only meet the optical performance required by the image sensor, but should also offer a solid mechanical design, able to withstand harsh environmental conditions over years.
In summary, for an uncompromized optical and mechanical performance, compact series lenses are always the first and best choice for C-Mount cameras.
- broadband coating (400-1000nm)
- precise focusing via fine thread
- focus lock with an Allen screw
- click-stop free iris setting
- iris lock with a knurled thumb screw
(Optional Allen screw assembly kit)
Typical applications, where these features contribute to the success of the complete system, are:
- defect control and classification
By the use of special glasses, the 2/3" lenses with an image circle diameter of 11mm are optimized for the entire spectral range of 400-1000nm (VIS+NIR).
