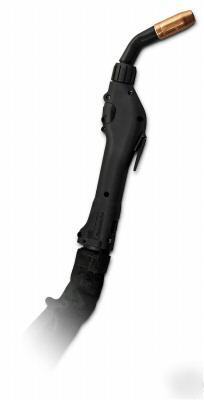

Miller 300001 xr aluma pro push pull gun wire feeder
UP FOR SALE IS A NEW MILLER ALUMA PRO PUSH PULL GUN. 25 FOOT MILLER PART # 300001
THE FOLLOWING INFORMATION COMES FROM THE MILLER WEB SITE AND SHOULD ANSWER ANY QUESTIONS, HOWEVER, FEEL FREE TO EMAIL US. THIS IS A NEW ITEM, WITH FULL WARRANTY.
The XR-Aluma-Pro air-cooled gun offers 300 amps more amperage than the competition can handle.
Aluminum-series-specific tension setting ensures smooth wire feeding performance with 4000 or 5000 series aluminum wires.
At 900 inches per minute, this gun will feed wire faster than any of its predecessors.
3-3/4 turn potentiometer provides better resolution when selecting the right wire speed for the job. The recessed WFS (wire feed speed) control offers durability
yet is easy to use while wearing welding gloves.
The easy-to-rotate, self-seating head tube allows for better access into tight spots, preventing leaks and providing excellent current transfer.
The XR-Aluma-Pro trigger has a wiping action to keep contact points clean for a more reliable electrical connection.
Trigger hold reduces fatigue by allowing operator to weld without holding trigger. (Feature available when paired with XR-Control.)
Isolated, common, knurled drive
roll helps reduce wear, reducing
Replaceable feed cable liner is designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner
and not the complete feed cable.
Serviceability. This gun features a full-length Velcro -seamed leather jacket with integrated strain reliefs for easy cable maintenance and protection. The gun also features quick connectors between the control cable and electrical components (trigger, motor, potentiometer).
Head tubes are standard Roughneck , FasTip
and are Bernard Centerfire compatible. Guns are warranted for 1 year, parts and labor.
Easy access to drive assembly and removable head tube reduces service time. Pressure release lever allows drive rolls to be held open for wire changeover.
Combine with Millermatic 252 , 350P or XMT 350 w/XR Control for a total aluminum welding system. The XR-Aluma-Pro Gun is available in air- or water-cooled versions with 15, 25, or 35 ft (4.6, 7.6, or 10.6 m) cable lengths.
* MIG (GMAW) with Aluminum and other soft alloy wire
* Typical Aluminum Fabrication
* Truck and Trailer Manufacturing
* Air: 300 A at 100% Duty Cycle
* Water: 400 A at 100% Duty Cycle
* .030 - 1/16 in (0.8 - 1.6mm) aluminum wire
* 70 - 900 IPM (1.8 - 23 m/min)
Max Spool Size Capacity on XR-Control
* Air-Cooled: 2.5 lb (1.1 kg) torch only
* Water-Cooled: 2.9 lb (1.3 kg) torch only
