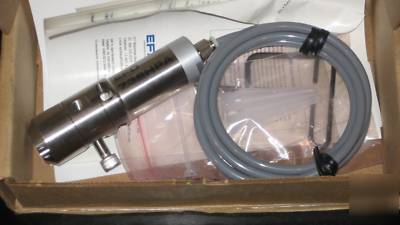

Efd 736HPA high pressure dispense valve
This unit is new in the box and sells for over $1,000. The 736HPA is a normally closed, air-actuated, balanced spool-type valve designed to operate at fluid pressures up to 2,500 psi (172 bar). Ideal for consistent dispensing of industrial sealants and greases, the 736HPA valve is simple to use and will operate many millions of cycles without wear or leakage.
Size: 116.1 mm length x 34.9 mm diameter
Air cylinder body: Type 303 stainless steel
Fluid body and cap: Type 303 stainless steel
Fluid inlet thread: 1/4 NPT female
Spool: Hardened stainless, hard-chrome coated
Spool seals: Hytrel (Viton optional)
Air pressure required: 70 psi (4.8 bar)
Maximum fluid pressure: 2,500 psi (172 bar)
Mounting hole: 5/16-24 UNF tapped hole or
