Noyes VFS1 display video fiber scope source (vfs-1)

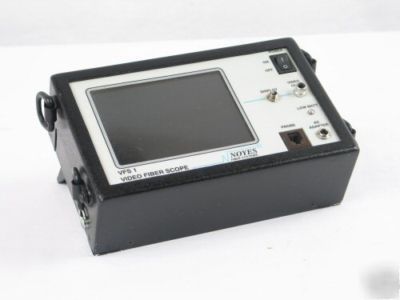

Noyes VFS1 Display Video Fiber Scope Source (VFS-1) Used
Model/Part No:VFS1 Our Item ID: 5100
Noyes VFS1 Display Video Fiber Scope Source (VFS-1)
The VFS 1 is a portable, video microscope designed to inspect fiber optic connectors through bulkhead adapters. The VFS 1 can therefore be used to inspect installed fiber optic connectors in patch panels, distribution frames, network equipment, and test equipment. The VFS 1 comprises an inspection probe and display unit. The probe includes an internal LED coaxial light source and a miniature CCD video camera. No bulb replacement is required. The front arm of the probe may be used in two positions: straight or 60 . The focus control is located at the rear of the probe. This allows the user to easily focus the probe even while inspecting connectors on equipment back planes or densely packed patch panels. The probe accepts connector specific tips that can be quickly changed when inspecting different connector types. The display unit provides a high contrast, active matrix LCD display. The size and resolution of this display, and the resolving power of the optics used in the probe, allow detection of pits, scratches, and contamination within the polished end of 125 m fiber. In addition, a wide field of view allows inspection of the surrounding ferrule to a diameter of at least 250 m. A video output is provided for an external monitor.
Item Tested?: TestedPhysical Condition: Excellent; Working Condition: Power-On Test Only Performed4 | 10x 8x6 | 1
