Lescomm 8719-192 expa kit, 858 chassis

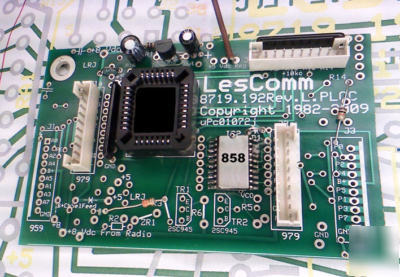

LesComm 8719-192.L2 858 Chassis kit.
Range switch, Band switch plus a +10kc switch.
No crystal change necessary to match the expensive radio's channel arrangements.
Radio's to chose from; Realistic TRC449, 457, 458, Cobra 138XLR, 139XLR, PRESIDENT/UNIDEN Madison-4 pin, Washington-4-pin and many more with the 858PLL!
Due to so many request for a 858 version, we've also adapted this board to now convert the 858 chassis.
***Soldering IS required. See the 858 Chassis Instructions page. It is not Plug and Play like the Galaxy board. But we are working to make the installation easier.***

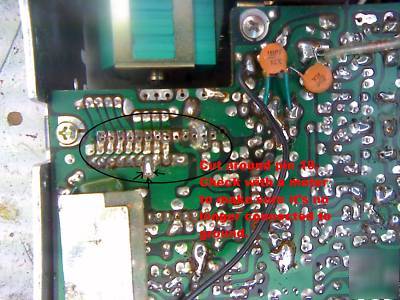

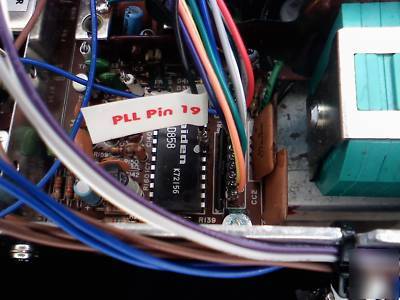

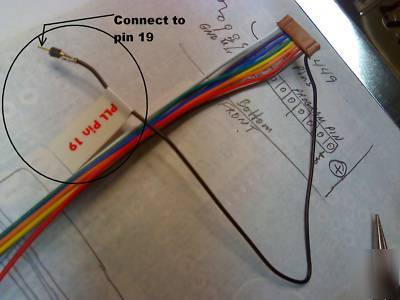

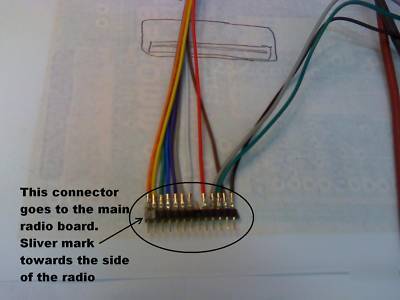

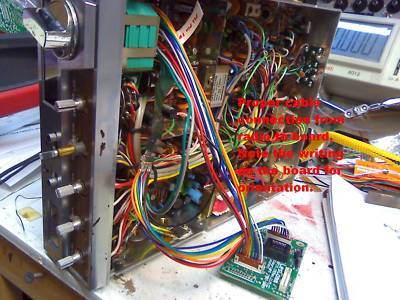

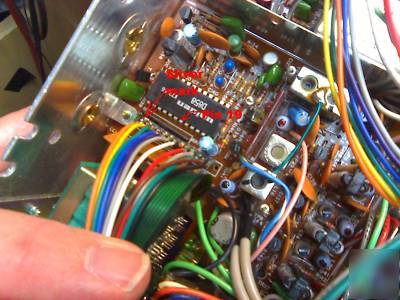

All connections to the radio are made from the TOP of the board. NO cut runs!* (Pin 19 must be isolated from ground.)
It also has a +10kc switch and a 5 position band switch plus a Range switch. Allows band selection exactly like the higher priced radio's. No crystal swap necessary.
The Microprocessor has a built in oscillator so changes happen lightning fast.

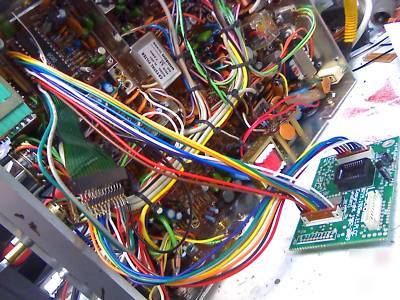

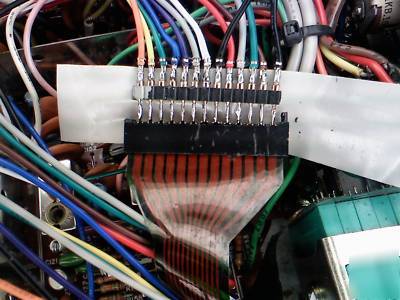

All connections are made from the TOP of the radio's board. No cut runs! *
http://LesComm.com/858_kit_inst
Usually 3-4 days assembly time depending on model.
