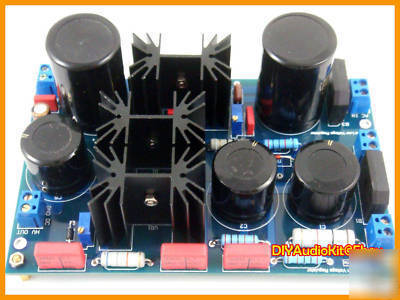

Assembled variable high voltage regulator 50-450V 0.1A
190V-450V(100mA)& 0-15V (1.5A) x 2
1. High voltage output voltage: 50V - 400V DC up to 100mA
2. Low voltage output voltage: 0-30V up to 5A
3. High power BJT switch E13005 and regulators LM1085 and LM1084
4. Output voltages can be adjusted by two resistor trimmers
5. Three BHC audio capacitor 100uF/450V and WIMA 100nF/450V for high voltage decoupling capacitors.
6. Two BHC audio capacitor 10000uF/63V for low voltage ripple decoupling capacitors.
7. Dedicated ground and power rails layout design
8. Lowpass filter with optional inductor 10H 100mA.
9. PCB dimension: 154mm x 98mm
