1994 smtw ecotech M1050A centerless grinder w/auto infd

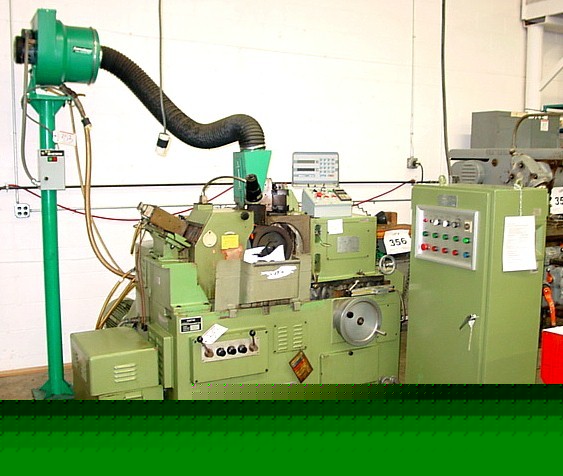

1994 SMTW ECOTECH M1050A CENTERLESS GRINDER w/AUTO INFD
MODEL: 1050A S/N: 1010 NEW: 1994
Capacity, Diameter Range ............................................ 0.02" to 2"
Grinding Wheel Size ..................................................... 15.7 x 6 x 8
Regulating Wheel Size .................................................. 12 x 6 x 5
Grinding Wheel Speed .................................................. 1668 RPM
Infinitely Variable Regulating Wheel Speed.................... 20-200 RPM
Regulating Wheel Swivel in Vertical Plane ................... -2 -+5
in Horizontal Plane ............... -1 -+3
Feed per Division of Handwheel .................................... 0.0001
Feed per Turn of Handwheel .......................................... 0.016"
Feed per Division of Dressing Dial .................................. 0.0005
Height from Connected Line Between (2) Wheel
Axes to Workrest Bottom ............................................... 8.66
Approx. Weight .............................................................. 7,000 lbs
Approx. Floor Space .................................. 97.6 L x 83.5 W x 58.2 High
Automatic Infeed of the Regulating Wheel (Option)
"MITUTOYO" Digital Readout Display for the Movement of the Regulating
Hydraulic Dressing of Both Grinding and Regulating Wheels
GE Electronic Variable Speed Drive Providing Infitely Variable
spindle Speeds for the Regulating Wheel
"AERCOLOGY" Mist Collector W/Stand
14.74 H.P. Grinding Wheel Motor
Machine is Presently Wired for 3/60/220 Volts
U.S. Distributor for Parts & Service:
Condition: Exceptional & Original
