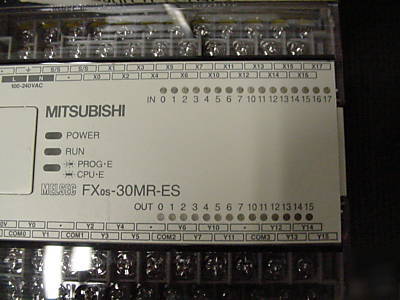

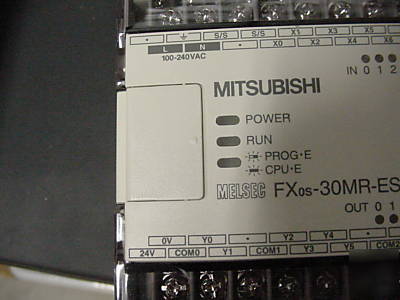

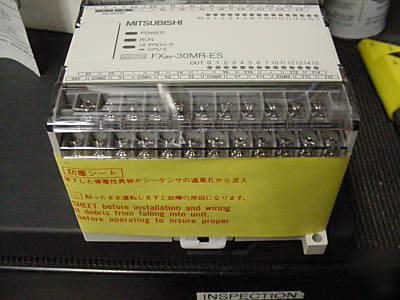

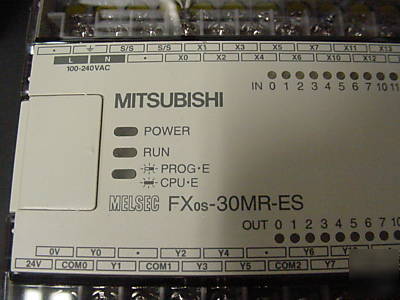

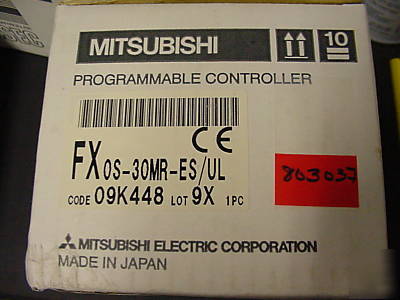

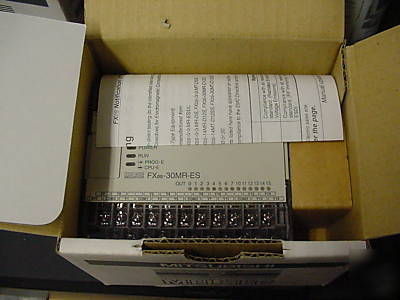

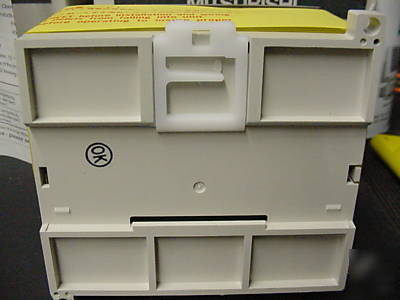

New compact plc – melsec FX0S - in box #8030037
The controllers of the FX0S series deliver outstanding functionality with up to 30 inputs and outputs in a very compact package.
The FX0S is ideal for applications in difficult-to-access installations and systems where normal servicing is not possible. The integrated real-time clock and maintenance-free EEPROM with capacity for up to 2,000 program steps make the FX0S an autonomous and very service-friendly system.
* 30 inputs and outputs High processing speed (0.55 s per log. instruction)
* Ample program storage space and large device ranges
* Integrated positioning controller
* Serial communications options (RS-232, RD-422, RS-485)
* Analog signal processing with optional expansion adapters (not included)
* Integrated real-time clock
* User-friendly programming with MS Windows-based programming software package or hand-held programming unit
* Expandable with adapters or display modules(not included)
Power supply 100-240V AC / 24V DC
No. of inputs 16 No. of outputs 14
Digital outputs Relay / Transistor
Program cycle period per logical instruction 0.55 - 0.7 s
Dimensions in mm (WxHxD) 100x90x75
ISO 9001 ISO 14001 ABS,LR, GL, RINA
