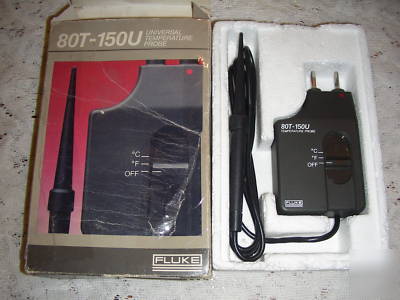

Fluke 80T-150U universal temparature probe
Here is the manufacturers technical mumbo-jumbo...
The Fluke 80T-150U Universal Temperature Probe is a self-contained temperature-to voltage converter. The probe is designed to provide a direct temperature reading when it is connected to any high impedance DMM that is capable of 1 mV resolution and at least a 300-count full scale readout capability. Output is l mV per degree (Celsius or Fahrenheit). Two switch selected temperature output scaling is provided: -50 to +150 C or -58 to +302 F. The probe will stand off 60 V dc or 30 V ac rms (42.4 V peak).
* Switch selectable for degrees C or F
* High accuracy, fast reading for low voltage (below 24 V AC, 60 V DC) applications
* Measurement range: -58 to 302 F
* Output: 1 mV/ C or 1 mV/ F
-58 to 302F (-50 to 150C) Cable 160F Max.
Input Impedence (Mohms) Required on DMM:
