8" w 18" l chevalier accugrind 818SP surface grinder, .
8" W 18" L Chevalier ACCUGRIND 818SP SURFACE GRINDER, .
8" Width 18" Length Chevalier ACCUGRIND 818SP SURFACE GRINDER, .00005" Fine Feed, DRO, Walker LBP E

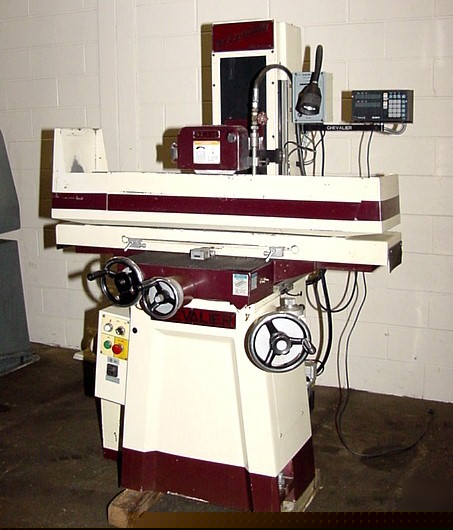

8" X 18" CHEVALIER "ACCUGRIND SERIES"
"SUPER-PRECISION" HAND FEED SURFACE GRINDER
MODEL: ACCUGRIND #818SP S/N: A6876003 NEW: 1998
**** SONY LH-51 2-AXIS DIGITAL READOUT DISPLAY ****
WIDTH AND LENGTH GROUND ................ 8" X 18"
LONGITUDINAL TRAVEL .................... 20"
CROSS FEED TRAVEL ...................... 9"
MAX. DISTANCE FROM TABLE TOP TO SPINDLE
CENTERLINE ............................. 20"
MAXIMUM GRINDING WHEEL DIAMETER ......... 8"
ELEVATING HANDWHEEL GRAD. ............... 0.0001"
ELEVATING HANDWHEEL PER REV. ............ 0.05"
MICROFEED PER GRAD. ..................... 0.00005"
CROSS FEED HANDWHEEL GRAD. .............. 0.001"
SPINDLE SPEED ........................... 3,450 RPM
FLOOR AREA OPERATING SPACE ...... 80" X 54" X 74"H
APPROXIMATE MACHINE WEIGHT ........... 2,310 LBS
"SONY" MODEL LH-51 2-AXIS DIGITAL READOUT DISPLAY
TABLE TRAVERSES ON LINEAR BALL BEARINGS
REINFORCED RIBBED COLUMN WITH HARDENED & GROUND
ELEVATING & CROSSFEED LEADSCREWS ARE HARDENED
SADDLE TRAVELS ON TURCITE-B COATED & HAND SCRAPED
COLUMN CASTING IS CROSS RIBEED FOR EXTRA RIGIDITY
ELEVATING GUIDEWAYS OF WHEELHEAD & COLUMN ARE
THE SLIDING SURFACES OF THE WHEELHEAD ARE
LAMINATED WITH TURCITE-B, PROVIDING ACCURACY
VERTICAL HANDWHEEL @ WAIST LEVEL
PERMANENTLY LUBRICATED & SEALED CARTRIDGE-TYPE
SPINDLE USES TWO PAIRS OF CLASS 7 ANGULAR CONTACT
2 H.P. 3/60/230-460 VOLT DIRECT DRIVE
8" X 18" O.S. WALKER FINE-DIVISION MODEL "LBP"
NEUTROFIER/CHUCK CONTROL w/VARIABLE POWER FEATURE
SET-UP FOR BOTH DRY OR WET GRINDING
EXTERNAL COOLANT TANK w/PUMP, TABLE SPLASH GUARDS & PIPING
MANUFACTURER'S STATED ACCURACY FOR THIS MODEL WHEN NEW:
** 0.000080" FLATNESS OVER ENTIRE SURFACE **
SPECIAL NOTE (PRICE LIST FROM 2004):
BASE PRICE FOR THIS MACHINE WAS $11,390.
THE SONY 2-AXIS DIGITAL READOUT INCLUDING
INSTALLATION WAS $2,900. THE 8" X 18" O.S. WALKER
CHUCK WAS $2,100. THE CHUCK CONTROL WAS ANOTHER
$710. COOLANT SYSTEM WITH SPLASH GUARDS WAS
ALL TOLD, THIS MACHINE ADDS UP TO $17,960
NEW IN 2004 AS EQUIPPED .... AND THE PRICES HAVE
** EXCEPTIONAL CONDITION & APPEARANCE ***
*** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE ***
