Torchmate cnc plasma cutter cutting router engraver 4X4
Torchmate 2 Bolt-Together CNC Shape Cutting Machine - Brand New
Call us toll-free at 1 (***) 571-1066

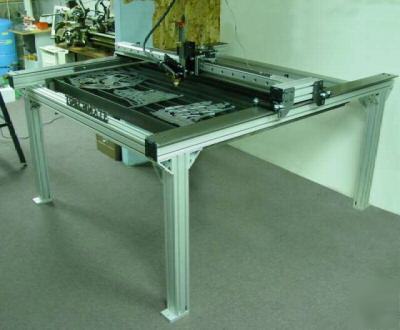

Brand new Torchmate CNC shape cutting machine.
This is the real thing, and should not be confused with recent copycats operating out of a post office box. Torchmate has been producing shape cutting machines for 25 years.
This machine uses a precision industrial linear motion assembly for its Y (cross) axis, and close tolerance cold roll steel rails on its X axis. The X axis is powered on both sides via a 3/4" diameter driveshaft, using a 3.4:1 timing belt/pulley reduction. This results in a whopping 459 oz. in. of torque to the rack and pinion drive trains of both axes, with no backlash.
The machine is constructed of heavy wall extruded aluminum, and can easily be broken down into sub-assemblies for relocation.
You supply your own plasma cutter & torch, and computer. Either a machine torch or manual torch can be used. You tell us which mount you want.
The system comes with Torchmate Windows based CAD and driver software with the following features and more:
Fully automatic nesting of parts
Automatic insertion of lead-ins & lead-outs
Automatic control of torch travel direction
Automatic conversion of scanned images
Imports dxf files and 40 other file formats
On-screen torch path simulation
digital feed-rate override with on-screen speedometer
digital read-out of torch position
Cutting speeds from 4.5 to 250 inches per minute. Easily configured for oxy-fuel, drilling, or routing. Runs off the serial port of your IBM compatible laptop or desktop PC. Torch on & off and dwell time for piercing are under full program control.
