Hp agilent 70905A 70902A 70900A & mf spectrum analyzer

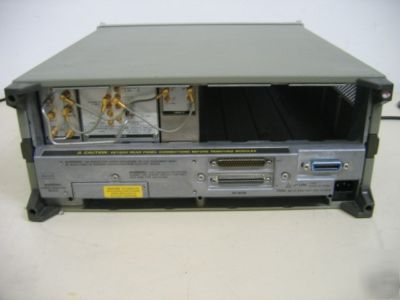

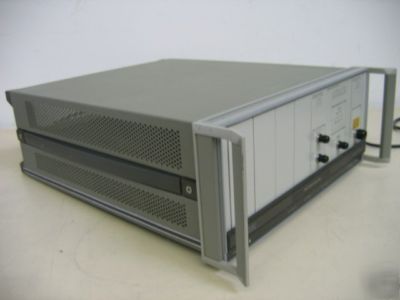

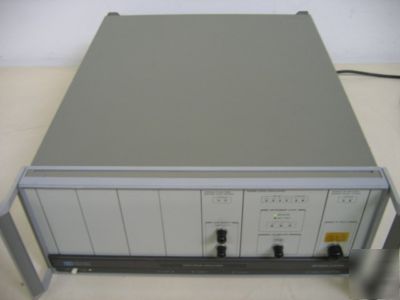

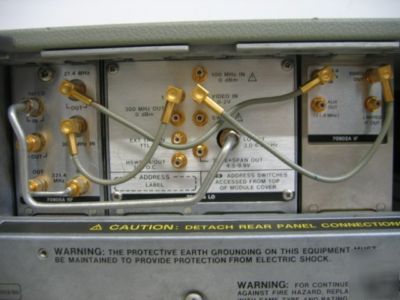

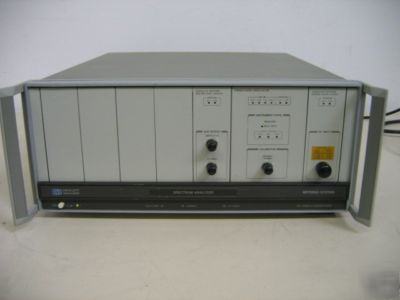

HP Agilent 70905A, 70902A, 70900A, 70001A MMS Spectrum Analyzer
* Description: This Agilent HP Spectrum Analyzer consists of:
* HP 70001A: 8-slot Mainframe

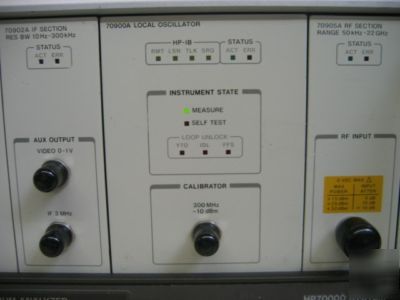

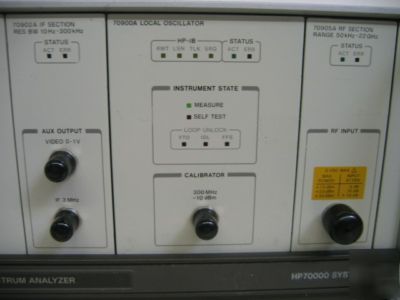

* HP 79000A: Local Oscillator Module provides a swept LO signal from 3 GHz to 6.6 GHz. The HP 70900A processes video signals and acts as the master controller for the 70000 series spectrum analyzer system. It contains the system firmware to control and coordinate measurements and to output data. The Agilent 70900A has a minimum 32K bytes of memory for DLPs.
* HP 70902A: The Agilent HP 70902A IF (Intermediate Frequency) Section provides narrow resolution bandwidths, from 10 Hz to 300 kHz. The HP 70902A IF section provides signal processing elements required for spectrum analyzers and lightwave signal analyzers. The HP 70902A maximizes measurement speed using 10% incremental bandwidths. Wide-bandwidths offer the most speed, whereas narrow bandwidths offer more resolution and sensitivity. The 10% incremental bandwidth steps offer you the best choice of bandwidth sizes. The bandwidths can also be changed in a 1, 3, 10 sequence. Calibrated logging amplifiers provide superb amplitude accuracy for the analyzers. The 3 MHz IF output on the HP 70902A allows connection to other instruments such as oscilloscopes, demodulators and digitizers.
* HP 70905A: The Agilent HP 70905A RF Section features broadband low noise mixers for a high dynamic range of 70 dB and has a 10 dB step attenuator for use without a preselector. Converts incoming RF signal to a 21.41 MHz IF. It has a frequency range of 50 kHz to 22 GHz.
* Cosmetic Condition: Very Good
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
