> Corning ots-400 sm fiber tester vfl OTS400 ots 400

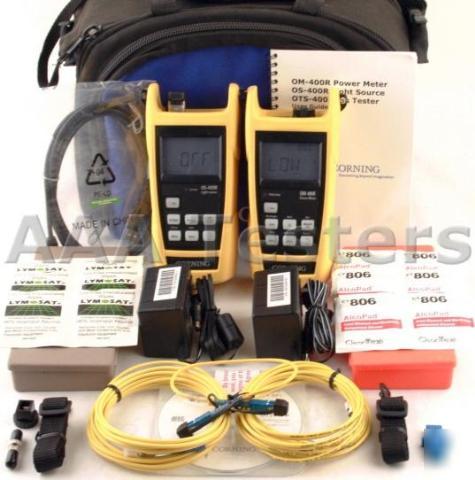

Corning ots-400 sm fiber tester vfl OTS400 ots 400
* Corning OM-410R Optical Power Meter
* Corning OS404RXD-58-VFL Optical Light Source
* Interchangable SC Connector For Meter
* Interchangable SC Connector For Source
* (6) CleanTex CT806 AlcoPads w/ Case
* (6) LVMSAT Presaturated AlcoPads w/ Case
* Corning OTSView OTS Report Processor
Corning Singlemode Fiber Optic Loss Test Set
Corning OM-410R Optical Power Meter & Siecor OS404RXD-58-VFL Optical Light Source With VFL
* Installation, testing and troubleshooting of LAN, telco, CATV and FTTx networks
The Corning Cable Systems OTS-400 Series of intelligent and versatile optical meters, sources and testers offers simultaneous testing and storage of dual-wavelength attenuation measurements. At the press of a button, dual-wavelength measurements are made and stored for the fiber under test. These sources, meters, and testers can be used during installation, system qualification and maintenance. The combination of practical features, simple operation, field performance and rugged design makes them perfect for virtually all fiber optic testing environments.
The OTS-400 Series meters, sources and testers are offered individually or packaged in test kits which include two instruments, accessories, test jumpers and a carrying case. The most popular combination of port adapters and test jumpers has been pre-selected for each type of kit to allow for testing right out of the box. A wide variety of additional source and meter port adapters are available along with other optional accessories.
* Auto testing provides automatic wavelength switching that cuts typical testing time in half
* Stores up to 1000 measurements which can be separated into individual cables, panels, or jobs. This eliminates field paperwork, saves time and improves testing productivity
* USB data ports provides convenient transfer of data to OTSView Windows -based PC Software for storage, viewing and printing of test results
* Dual-, triple- and quad-wavelength sources provide the flexibility of testing multimode cables, single-mode cables, or hybrid cables
* Two power meter ranges available: +10 to -70 dBm (standard range) and +26 to -55 dBm (extended range) with 40 calibrated wavelengths provide both LAN testing and long-haul testing flexibility
* Dual- and triple-wavelength testers with source and meter in the same unit improve bi-directional testing productivity by eliminating the need for technicians to physically change ends of the system under test
* Generation and detection of 270 Hz, 1 kHz and 2 kHz tones provides system continuity tracing capability
* Thresholds available for pass/fail indication, which speeds the testing process
* Rugged and ergonomic design with backlit display makes the OTS-400 easy to read, easy to hold and easy to handle
* Complete selection of connector adapters available with field-interchangeable universal interface adapters on source ports and screw-on connector adapters on meter ports, which eliminates the requirement to use hybrid patch cords for testing
Number of Calibrated Wavelengths
Automatic Wavelength Recognition
Battery Life (hours) (typical)
19.0 x 10.0 x 6.2 cm (7.5 x 4 x 2.5 in)
Power Stability 3 (dB) 15 min.
Battery Life (hours) (Typical in Auto mode)
VFL5 (model numbers with -V suffix)
-40o to 70o C (-40o to 158o F)
