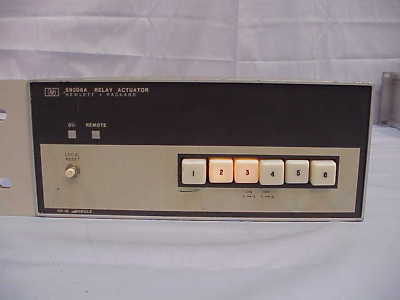

Hp 59306A relay actuator lab tested 7 day inspection
Some button light bulbs need to be replaced. Works great in either case.
The HP 59306A Relay Actuator simplifies the control of external HP-IB devices. Front panel
push buttons make it easy to establish and debug signal routing before a system is placed in
remote operation. The 59306A provides control for a variety of devices, including microwave
coaxial switches like the 8761A/B, and microwave programmable step attenuators, such as
the 8494A through 8496G/H, using external dc power supplies. Six Form-C relays provide
either manual or remote management of instruments. Relays are wired to meet IEC standards
for the switching of primary power and are specified to switch 28 Vdc or 115 Vac at 0.5 amps.
Each switch can be programmed independently, or multiple relays can be switched together.
Local-reset pushbutton allows immediate operator control
HP-IB programmability facilitates remote device placement
Front panel lights give quick indication of relay state
All relay contacts are easily accessible
Compact unit includes internal power supply
Local-Reset: unless a local lock-out bus command has been utilized (usually for systems work),
the local-reset returns control from remote operation to the front panel.
HP-IB Programmability: The HP 59306A minimizes signal losses by allowing placement of microwave
attenuators and switches near the signal paths.
control in automatic test systems.
