Hewlett pakard 1660AS logic analyzer/ oscilloscope

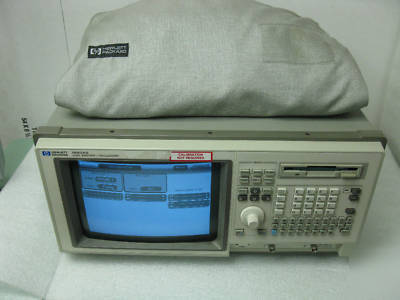

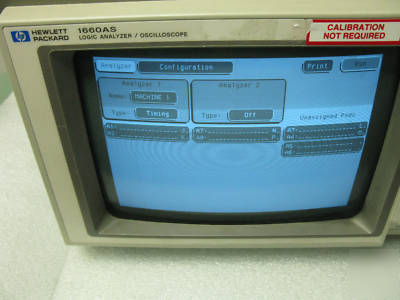

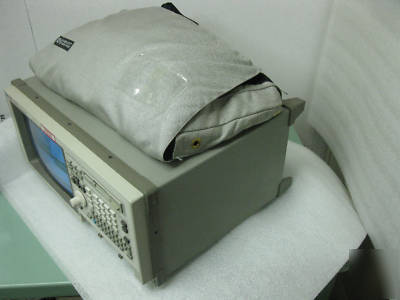

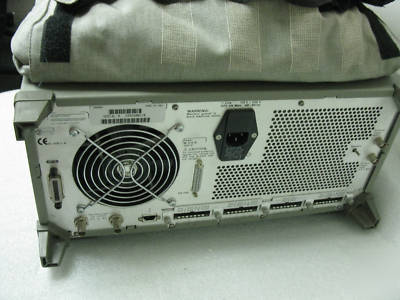

Hewlett Packard 1660AS Logic Analyzer Oscilloscope
The HP/Agilent Technologies 1660A Series Logic Analyzers are part of a
new generation of general-purpose logic analyzers. The 1660A Series
consists of five different models ranging in channel width from 34
channels to 136 channels. State speed is either 50-MHz or 100-MHz
(depending on the model), and all models have 500-MHz timing
speeds. The 1660A series logic analyzers are designed as full-featured
stand-alone instruments for use by digital and microprocessor
hardware and software designers.
- State and timing channels: 136
- Setup/hold time: 3.5/0 ns to 0/3.5 ns
- State/timing memory depth: 4k on all channels, 8k on half channels
- Timing analysis modes and speeds (conventional):
250MHz on all channels, 500MHz on half channels
- Timing analysis modes and speeds (transitional):
125MHz on all channels, 250MHz on half channels
- Timing analysis modes and speeds (glitch): 125MHz on half channels
- State analysis speed: 100MHz
- Minimum detectable glitch width: 3.5 ns
