> New nexen air clutch p/n 924001

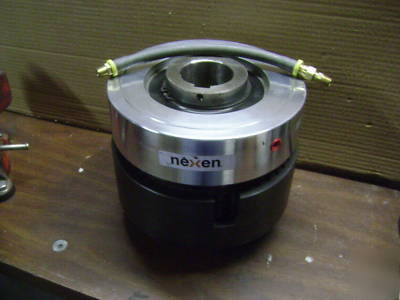

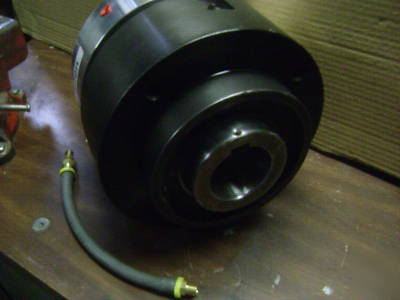

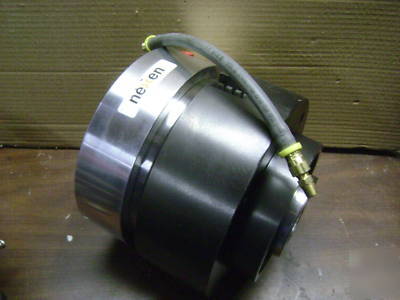

New nexen air clutch p/n 924001

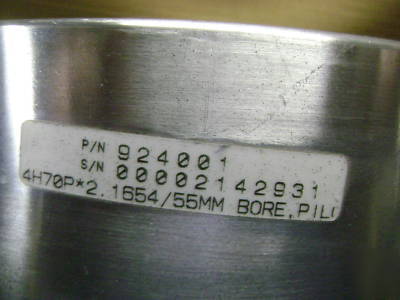

4H70P*2.1654/55MM BORE,PILOT,SPCL
Air Engaged, Straight Bore, Shaft Mounted, Multi Disc Clutch With Pilot Mount Output
Drive Arrangement: Pilot Mount
Pilot Size: 5.750 +0.000/-0.001 in
Pilot Or Drive Flange Bolt Circle Data: (4) 1/2"-18 Bolts @ 90 On A 7.000 in. Circle
Clutch Facing Type: Standard Coefficient
Clutch Facing Edge Color Code: Red
Maximum Static Clutch Torque: 10,000 inlbs
Maximum Clutch Continuous Thermal Dissipation: 0.28 hp
Clutch Heat Sink Capacity: 18,440 ftlb
Clutch Peak Thermal Input Rate: 141.73 hp
Minimum Sprocket Size: 60/38T, 80/30T, 100/24T, 120/21T
Minimum Engagement Pressure: 10 psi
Approximate Clutch Facing Life: 752 hphr
Clutch Air Chamber Volume When New: 1.035 in .
Clutch Air Chamber Volume When Worn Out: When Properly Selected Wear Is Minimal
Finish: Aluminum Air Chamber, Black Oxide Drive Shell
