Belt parts washer aqueous cleaning hot jet spray

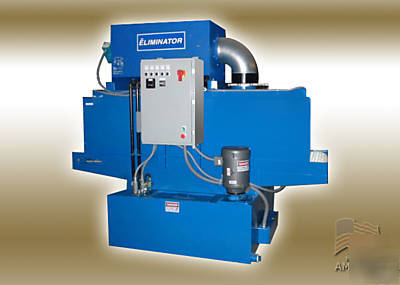

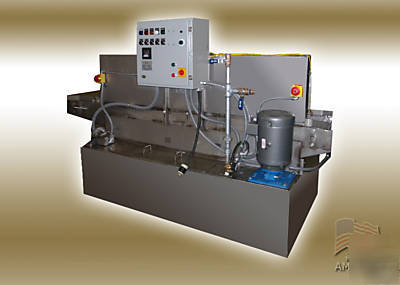

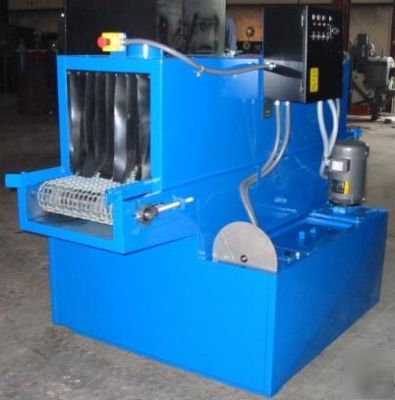

MAXJET PASS THROUGH- BELT WASHER
This is a NEW unit to which you can add custom options. The continuous cleaning adds to your productive.
Approximate overall dimensions: 84 long X 62 wide X 72 tall
Part opening: 24 Wide X 15 Tall
Breakdown of zones within the unit:
* 16 (1 4 ) clear load area
* 28 (2 4 ) spray wash zone
* 12 (1 ) drip/exit from wash
* 16 (1 4 ) exit from wash
Conveyor belt type: 24 Wide, 1 X 1 Galvanized Steel, flat wire clinched edge
Max load of conveyor is 1,000 lbs. evenly distributed.
Drive system: Variable speed 1\4 HP (1\2 HP on 24 and lager belts) (Direct Current DC) Operating speed is 1 to 20ft./min.with current sprocket-to-sprocket ratio. Includes a Dodge belt saver torque converter.
Tunnel accessibility: The tunnels are equipped with removable side panels for access to
the entire interior of the tunnel.
Tank accessibility: The solution tank is equipped with a large lift-off hatch to provide
access to the tank for cleaning and/or service.
WASH STAGE: _ _______________________________________________________
Closed-Loop Re-circulating
Heat source: 36KW Electric heat
Solution capacity: 200 Gallons-Insulated
Drain: 2 Conveniently located for ease of draining.
THE FOLLOWING OPTIONS ARE INCLUDED IN THE BASE PRICE QUOTED ABOVE
MJPTW1 CONVEYORIZED CLEANING SYSTEM,
Basic conveyorized cleaning system in a mild steel configuration with wash section.
The chip tray\thermal barrier which consists of a mild steel tray, which is mounted under the conveyor belt. This tray diverts all of the spray solution to a central point in the tank access area, where it flows through an easily removable, mild steel perforated basket. After flowing through the basket, the water returns to the main tank for reheating. This option helps retain heat while retaining debris and particulate matter in the basket for easy removal.
MAXJET Pass-Through Washer Are Available in Standard Models, Custom Stages, and Special Fixturing
Cast Iron Strainer with SS Strainer Basket
Maxom Tube O Therm Natural or Propane Gas (Immersion tube burner)
Electric Heat 220 1 ph, 208V, 230 V, 480V, 575V, 3 ph and 375 V

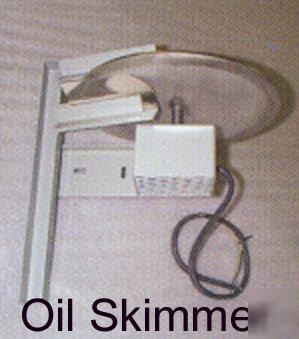

Oil Coalescer Full or partial insulation packages
Steam exhaust system Increased belt width
Increased vertical clearance Increased Load Capacity
