Dayton 20" blower & 5HP siemens electric motor

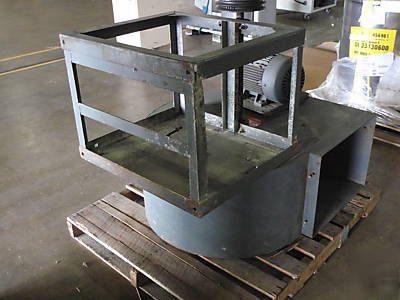

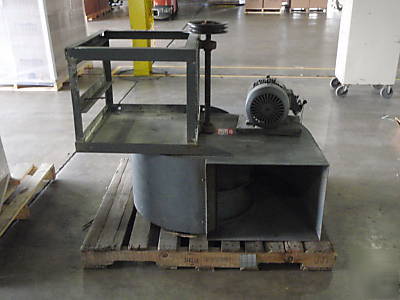

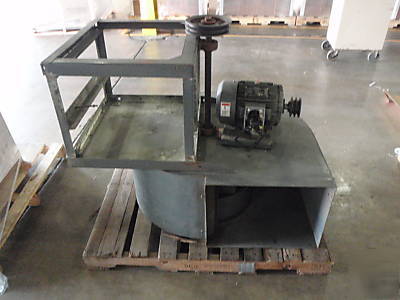

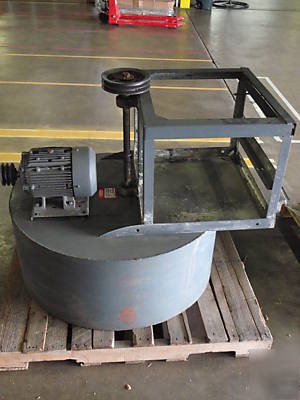

20" Dayton Backward Incline Belt Drive Blower and a quality Siemens 5HP electric motor. Used and in good working condition.
The following are specifications I collected online.

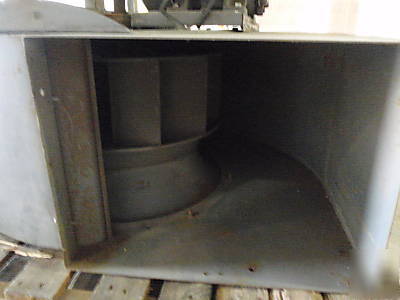

Single Inlet Backward Incline Belt Drive Blower, Wheel Diameter 20 Inches, Shaft Diameter 1 3/16 Inch, Inlet Diameter 21 1/2 Inches, Inlet Area 2.435 Square Feet, Outlet Height 21 1/2 Inches, Outlet Width 15 7/8 Inches, Outlet Area 2.318 Square Feet, Mounting Hole Diameter 1/2 Inch, CW Rotation Viewed From Drive Side, Maximum Inlet Air Temperature 250 Degrees F/121.1 Degrees C, Weatherproof Drive Cover Included, Without Motor, Recommended Motor Power Range 1 1/2 HP Thru 7 1/2 HP @ 1725 RPM Price: $1,500

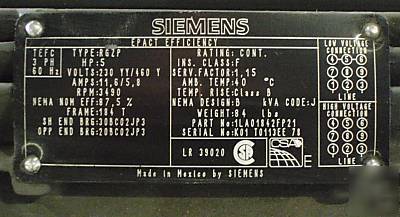

Siemens Electric Motor: 1LA01842fp21
Siemens | 1LA01842FP21 | 5HP | 3600RPM | 3PH | 60HZ | 184T | TEFC
General Purpose TEFC motors are ideal
atmospheres that contain moisture,
workhorses are ideal for use in material
other industrial applications.
* 1.15 service factor, 40 C ambient
* 3600, 1800, 1200 or 900 RPM
* 3 phase, 60 Hz; 230/460 volt
operation under 100 HP, 460 volt 100 HP and above; 575 volt vailable
* Meets or exceeds EPAct efficiency
* Class F insulation, Class B temperature rise
* NEMA Design B, Continuous Duty
Frame & End Shields Cast iron
construction (aluminum endshields
143T 256T frames) for exceptional
structural integrity with condensation
drain holes (143T 256T frames) or
condensation T-drains (284T 449T
frames). Lifting eyebolts are included for
Rotor A unique offset rotor bar design
provides improved efficiency while
larger bars and end rings reduce
resistance for lower rotor losses. Each
die cast aluminum rotor assembly is
dynamically balanced for extended
bearing life, and includes a highstrength
carbon steel (C1045) shaft for
Stator/Windings Manufactured with
premium electrical grade steel
laminations and copper electrical
magnet wire to lower losses for
improved efficiencies. A unique stator
core design lowers flux density while
Insulation Proprietary inverter-rated
insulation system with Class B
temperature rise, provides an extra
margin of thermal life. Varnish system
application ensures maximum wire
penetration to provide protection from
moisture, corrosion and electrical shock.
This insulation system is suitable for
operation with variable frequency
Cooling A bi-directional, non-sparking
fan is locked and keyed to the shaft. Its
low-inertia design reduces windage
losses, improves air flow, reduces noise
and provides dependable cooling.
Polycarbonate fan covers are provided
on 143T up to 365T frames, and cast
iron for frames 404T and larger.
Bearings Greaseable, oversized single
shielded with cast iron inner caps
(444T 449T frames), pipe plugs on both
the inlet and relief ports (143T 256T
frames). Alemite grease fittings on the
inlets and pipe plugs on the relief ports
(284T 449T frames) for ease of routine
maintenance. For added bearing
protection, 284T 449T frames are
equipped with a drive end shaft V-ring
Lubrication A specially formulated,
high temperature tested, polyurea based
grease is used to provide more than four
times the lubrication life of other
Oversized Conduit Box Larger than
industry standards, diagonally-split,
connections. Leads are non-wicking and
are clearly and permanently marked.
Aluminum construction for frames 143T
to 256T, steel for frames 284T to 405T
and cast iron for 444T frames and
Corrosion Resistance Cast iron
construction, zinc-plated hardware,
epoxy enamel paint and aluminum
nameplate resist rust and corrosion.
Modifiable All Siemens motors are
available with a wide variety of
modifications to meet your specific
