> Vertex 8" vertical / horizontal rotary table
Vertex 8" vertical / horizontal rotary table

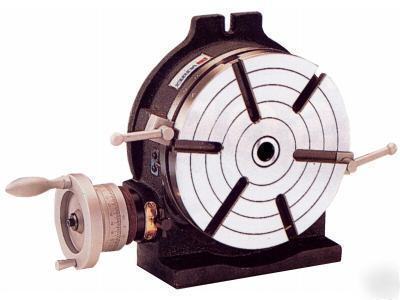

Vertex 8 inch Vertical / Horizontal Rotary Table(Please note photo is of a larger table with 6 slots) Description Hardened and Ground Worm. The ratio is 90:1. The work table is graduated a full 360 degrees so that one turn of the handle moves the table through 4 degrees. Mirco collar is graduated in steps of 1 minute, and the vernier scale makes settings down to 10 seconds possible. These Rotary Tables are popular for their excellent performance, practical design and reasonable cost, they are widely used for circular cutting work, angle setting, boring, spot facing and similar work. HV8Table Diameter 200mmCentre Height 105mm3 Off Tee Slots 14mm Wide3MT Centre SleeveWeight 26Kgs Contact InformationROTAGRIP LTD16-20 Lodge RoadHockleyBirminghamB18 5PNTel 0(***) 551 1566Tel 0(***) 554 5177Fax 0(***) 523 9188email rotagrip@blueyonder.co.uk
