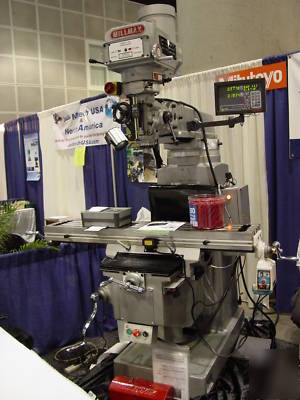

Vertical knee mill milling machine 3HP vari speed 10X52
M4 Series, Box Ways, R8 Spindle, Variable Speed Head, 10x52" Table, Special Promotion Package

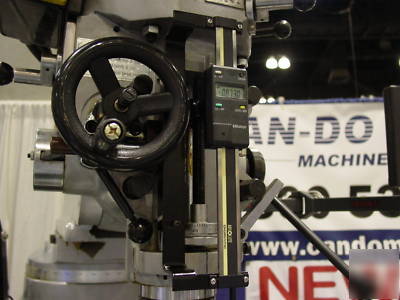

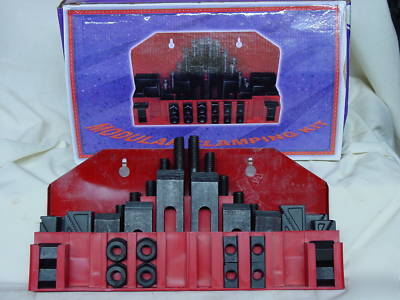

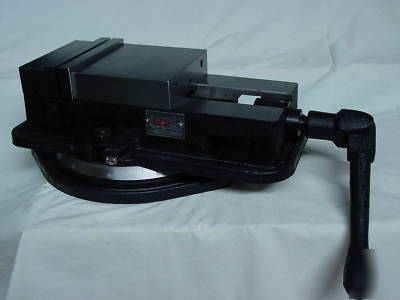

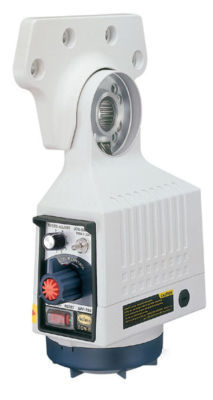

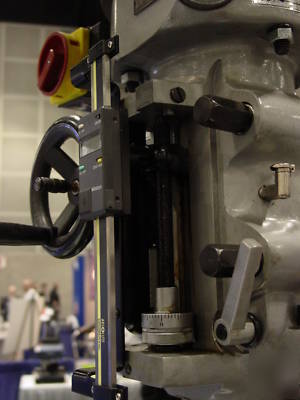

Limited Time Promotional Package includes ABEC7 Super Precision Spindle Bearings, 2-Axis Newall DRO, Mitutoyo Quill Readout, X-Axis Power Feed, 8Pc R8 Collet Set, 52Pc Clamping Kit, 6" Precision Vise With Removeable Swivel Base, Halogen Work Lamp, Accessory Installation and Indididual Packing Costs Included.
FREE FREIGHT TO THE LOWER 48!!
(lift gate service not included)
Axis Travels (inch): X-29.53" Y-16.93" Knee16.93" Quill-5" RAM-21.65"
Machine Dimensions 63"x69"x87"
Throat-Z (Spindle to Table) 1.97"min-18.9"max
Throat-Y (Table Center to Column) 7.48"min-23.23max
Variable Speed Spindle Head 60-4200 rpm
Tested Quality - ISO 9001 Certified
3 Hp 3-Phase 220/440VAC Spindle Motors
Hard Chromed Powered Quill - Up and Down - Feed Select: 0.0015, 0.003, 0.006 in/rev
Tempered and Carburized Chrome Molybdenum Steel Spindle
R8 Spindle Taper (NT30 and NT40 Optional) - 100% Factory Test Data Provided
Head Rotation (Deg) 90 left/right, 0-45 front/back, 360 Orbital
Induction Hardened & Precision Ground Table & Ways
PBC-2 Phosphor Bronze Backlash Adjustable Lead Screw Nuts
Full Length Precision Ground Gibbs with Double End Adjustments
Turcite-B X&Y Saddle Ways - Precision Hand Scraping Throughout
Wide Knee - T-Slots (3 x 0.63 x 2.48") - Way Guards - Double Travel Locks
Control Box with 110/220VAC Outlets - On/Off/E-Stop Switch Box and Indicator Light
Manual 1-Shot Lubrication System - Automatic Optional
7/16"-20 Draw Bar, Tool Box With Operation Manual And Test Data
Includes Leveling Pads - Lift Eye - Rear Ram Eye
SC250 Superior Rigidity - Unique Box Structured Castings
Specifications and Prices subject to change without notice
http:// /index.html
Imported by Good News Industrial LLC
