Neon sign plant equipment supply, reusable mercury trap
LISTING IS FOR A QUANTITY OF ONE (1) CONFIGURATION OF YOUR CHOICE - NOT ALL 3.

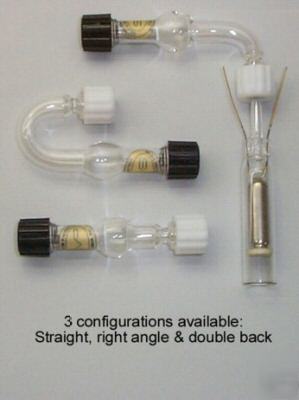

There are 3 standard configurations available as shown in the picture: Straight, Right Angle and Double Back.
(Custom configurations & quantity pricing are also available).
BRAND NEW direct from the manufacturer.
Many were taught to make hand-made mercury traps so the bubble hangs down like a pot-bellied pig instead of making a nice, round ball or sphere. The normal pumping procedure is to slowly open the main vacuum stopcock so the mercury will not be sucked out of the trap. It is generally misconstrued that if the bubble hangs down it will help keep the mercury in the trap and from being sucked out of the bubble. However, this configuration actually HELPS the mercury to be sucked out of the bubble! Here s why: The more uneven the bubble is and the more the side arms of the trap are out of alignment with the center of the bubble (the pot-bellied pig look), the more turbulence there will be in the bubble when air is pulled through the trap. The more turbulence there is the greater chance there is of sucking the mercury out of the trap and into the manifold when the main stopcock is opened. If the trap is a round sphere with the side arms aligned with the center of the bubble the air will pass through the bubble with much less turbulence. The less turbulence there is the less chance there will be of the mercury being sucked out of the trap. It is easy to do your own test to confirm this: Make two home-made traps; one with the bubble hanging down and one that is nice and round with the side arms aligned with the center of the bubble. See which one the mercury is disturbed in the most when the main vacuum stopcock is opened.
With our Reusable Mercury Traps, because they are made with larger diameter tubing there is even less turbulence. The main vacuum stopcock can literally be opened as fast as possible and the mercury will NOT be sucked out of the trap! (We do this all the time on our manifold, which has a 20mm main stopcock connected to a 650 liter/min. [23 CFM] vacuum pump). The larger diameter also improves pumping speed.
We have been using these in our shop for over 12 years. We could not even begin to calculate how much labor time and materials these have saved us since we started using them. They have paid for themselves many times over.
THESE ARE A GREAT TIME & MONEY SAVER FOR ANY NEON SHOP - LARGE OR SMALL (see link to cost comparison below). AND OUR NEON TUBE MERCURY INJECTOR (listed separately) COMPLIMENTS THEM NICELY!
SAVES MATERIALS - ECONOMICAL
FASTER PUMPING LESS FLOW RESTRICTION
LIGHTWEIGHT LESS THAN 1 OUNCE
* See Cost Comparison here: http:// /Cost_Comparison.html
Complete details, information and additional pictures may be seen here: http:// /mercury_products.html
SEE ALL OUR LISTINGS FOR OTHER QUALITY NEON EQUIPMENT & SUPPLY ITEMS
