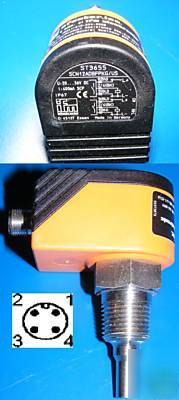

Ifm ST3655 flow switch
ADJUSTABLE DIGITAL FLOW SENSOR WITH SWITCHED OUTPUT. CLEANED AND TESTED. FULL SPECS AT IFM WEBSITE. THREAD SIZE IS NPT. ELECTRICAL PIN OUT IS 1,2,3,4 GOING COUNTER CLOCKWISE STARTING FROM FIRST PIN TO THE RIGHT OF THE KEY.
Operating voltage [V] 20...36 DC
Short-circuit protection Yes (non-latching)
Reverse polarity protection yes
Max. temperature gradient of medium [K/min] 300
Medium temperature [ C] -25...80
Greatest sensitivity [cm/s] 3...60
Adjustment of the switch point with pot.
Power-on delay time [s] max. 20
Operating temperature [ C] -20...80
Materials (wetted parts) stainless steel (320S31)
