#430-25 cin-milacron "vercipower" vertical mill T366

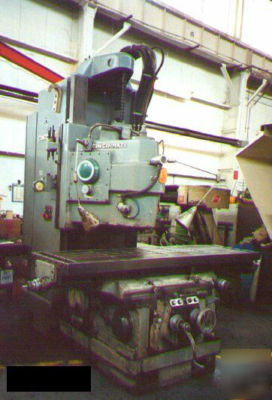

#430-25 CINCINNATI-MILACRON "VERCIPOWER" VERTICAL MILL
New 1963, Serial No 9J44V5M-10, Model 430-25,
Vertical Turret Stops (4-Position)
Table Dimensions (Overall), W x L....... 25" x 87"
Table Working Surface, W x L............ 25" x 87"
Table Longitudinal Travel (X-Axis)...... 42"
Saddle Cross Travel (Y-Axis)............ 18"
Vertical Travel (Z-Axis)................ 24"
Spindle Taper........................... #50 NSTD
(24) Spindle Speeds, Range.............. 14 TO 1400 RPM
(32) Longitudinal and Cross Feeds....... 3/8 TO 90 IPM
(32) Vertical Feeds, Range.............. 3/16 TO 45 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower RPM........... 30 HP
Feed Motor, Horsepower/RPM.............. 7.5 HP
Floor Space Required, W x D............. 11'4" X 12'1"
Overall Height.......................... 9'0"
Weight, Approximately................... 21650 LBS
PRICE: F.O.B. CINCINNATI, OH ...........$8,950.00
