New pk technology york port FK12 angled fiber cleaver

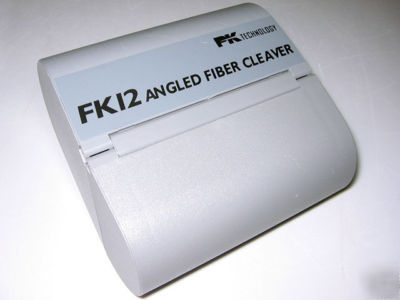

PK Technology FK12 Angled Fiber Cleaver
It is designed for low reflectance fiber termination fiber termination of better than -60dB. Fast and repeatable cleaving of fiber ends at user-selectable cleave angles (0 to 15 degrees) make it possible for installers to reduce the reflectance of mechanical splices and other fiber terminations without the use of index matching gels.
* Fiber Cleaved: 125 um (cladding diameter)
* Maximum fiber buffer: 250 um diameter
* Minimum cleave length: 6 mm (.23 inches) apx.
* Cleave angle setting: 0 to 15 degrees
* Cleave angle repeatability: < 1 degree typical
* Blade: Diamond, estimated life > 20,000 cleaves
* Battery: 9V alkaline (MN1604), estimated battery life > 10,000 cleaves
* Operating temperature: 0 to 45 degree Celcius
* Storage temperature: -20 to 60 degree Celcius
This unit is in physical and electrical good condition. It has been tested by an onstaff engineer and is in good working order. It comes with a 14 Day Guarantee against DOA from receipt.
* Cashier's Check or Mony Order
