Romulus iii universal tester, quad group, parker daedal

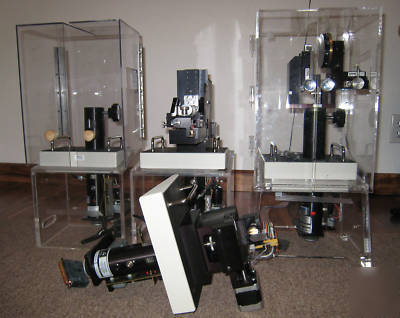

These tester stations were manufactured by Quad Group, Inc of Spokane Washington. There are several Parker Daedal linear sliders mounted on them.

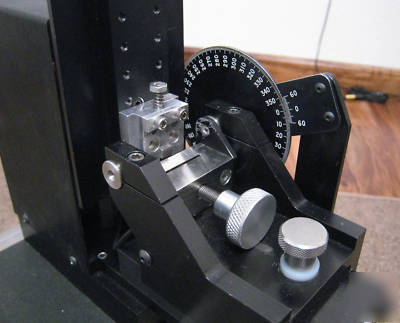

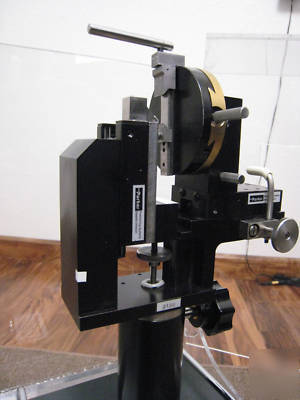

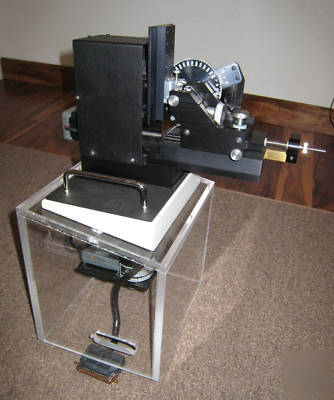

* 1 Die Bond Shear Tester with 2 separate drive mechanisms (i.e. 100kg and 200kg bases): Definition from the Quad Group web site "A quick die-bond test which requires no sample prep and is executed in seconds. As per Mil Std. 883, Method 2019, the sample is brought in contact with the shear tool by X, Y, Z and rotational adjustments. A shear wedge is forced against the component edge until failure. Excellent for SMD components".

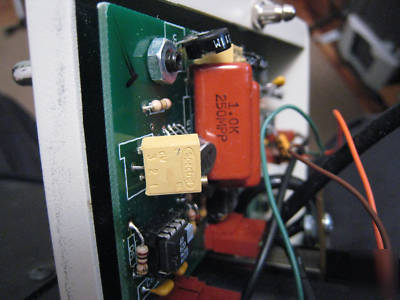

* 1 Hesiometer: Definition from the Quad Group web site "The Hesiometer is a software driven Blade Cutting Adhesion Tester intended for use in testing the bond strength of epoxies, bonding agents, paints and inks, laminates and other thick coatings". Note: One of the yellow chips on the underside of this unit has been bent to a slight angle possibly from insertion into the base (picture included).

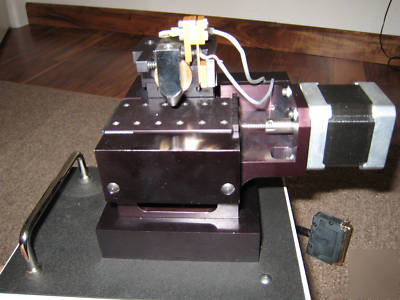

* 1 Stylometer: Definition from the Quad Group web site "The Stylometer is a software driven Diamond Scratch Coating Adherence Tester. It is intended for the testing of all kinds of thin films and is especially valuable in the testing of Tribiological or Wear Coatings whose adherence normally exceeds the measurement range of all other known adherence test instruments."

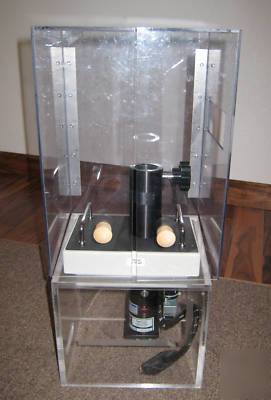

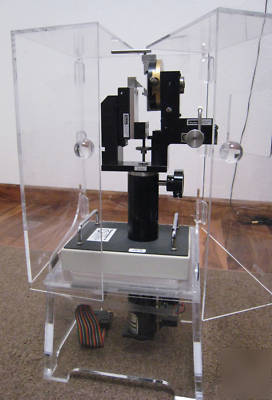

* 2 Plexiglass shields that fit atop the bases

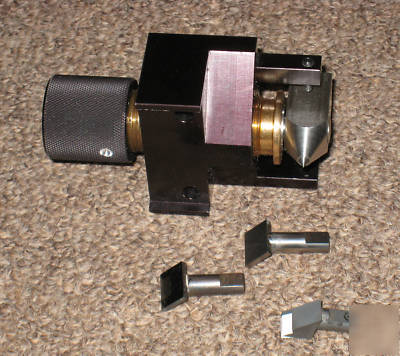

* 1 additional Stylometer head and spherical diamond
* Several additional shear test tool bits
* Odds and ends screws and wrenches

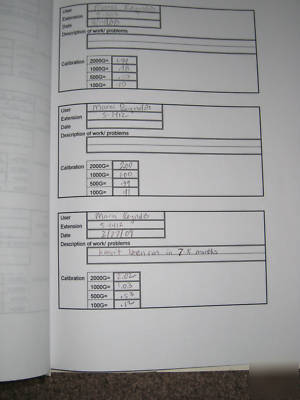

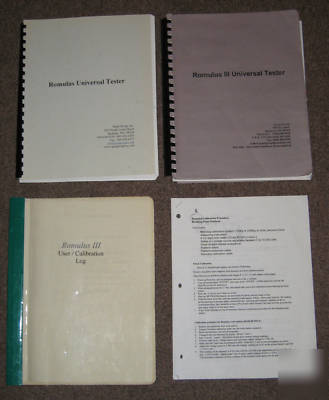

* 1 Calibration Procedure document

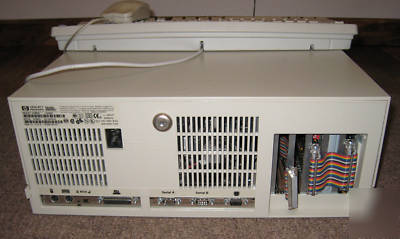

* 1 HP Vectra 486/66U computer complete with Romulus software and necessary I/O cards required to interface with the testers (sorry no extension cables)
