> Tla quick-stop tubing pinch valve, size 5 w/locking pin
Tla quick-stop tubing pinch valve, size 5 w/locking pin

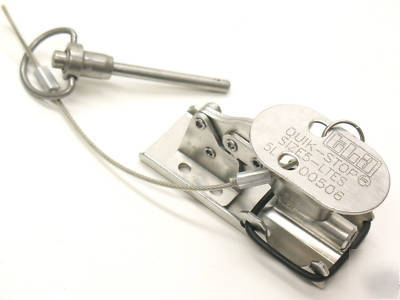

ITEM: TLA Model# 5-LTES Quick-Stop Tubing Pinch Valve w/ Locking Pin for Use in Biotech and Pharmaceutical Manufacturing, Size 5 w/ Lockout, Autoclavable, Validated Position Design, Stainless Steel Construction, SS Locking Pin w/ , EPDM Tubing Retainer O-Ring, Operates on Flexible and Reinforced Tubing w/ Wall Thickness of 1/8" or Less and w/ Tubing Diameter Up to 3/4" OD, w/ Four 3/16" Dia. Mounting Holes on Baseplate.
- Positive Shut-off with Toggle Mechanism with Locking Pin for Long Term Security and Validated Position
- Absolutely no Product Contact Between Valve and Process
- Valve can be Autoclaved Numerous Times for Sterilization on or off the Tubing
- Valves can be used in Block and Bleed Operations Controlling Steam and Condensate with Appropriate Tubing
The Quik-Stop tubing pinch valves control the flow of fluids in flexible and fiber reinforced tubing by pinching the walls of the tubing together. The Quik-Stop tubing pinch valve is an excellent choice for applications in the pharmaceutical and biopharmaceutical industries. The Quik-Stop tubing pinch valves open up the opportunity for many configurations involving flexible tubing including steam sterilization and block and bleed applications. The Quik-Stop tubing pinch valves are suitable for different tubing sizes and wall thickness.
CONDITION: GENTLY USED, in SUPERB, SUPER CLEAN CONDITION.
SOURCE: From the carefully decommissioned equipment of a large biopharmaceutical manufacturing facility.
SELLS ELSEWHERE FOR APPROX.: $100 New.
