Shop fox vertical mill w/power feed and digital readout

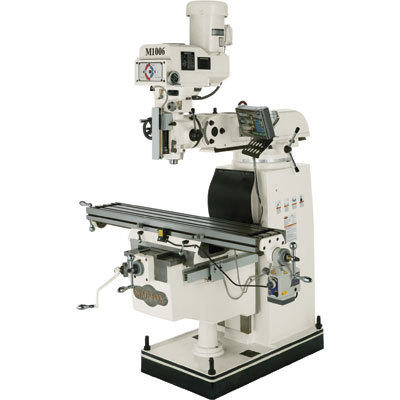

SHOP FOX Vertical Mill w/Power Feed and Digital Readout
The SHOP FOX Vertical Mill M1006 is a machine with the capability to complete the hardest jobs with extreme precision and repeatability. The heavy-duty M1006 has all the features necessary for an industrial shop: a powerful 3 HP, 3-phase motor with variable speeds from 80 to 4250 RPM, a 10in. x 54in. table, longitudinal power feed and a 3-axis digital readout. HP: 3, Volts: 220 (3 phase), Speed (RPM): 70 - 4,200, Speeds (qty.): Variable, 360 Head Swivel: No, Draw Bar: Yes, Chuck Size (in.): R - 8, Worktable L x W (in.): 10 x 54, Light Included: No, Stand Included: No, Dimensions L x W x H (in.): 75 1/2 x 72 1/2 x 86 3-axis digital readout has a 5um resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points One-shot pump lubrication Auto down feed Quill feeds/spindle rev.: .0019in., .0035in., .0058in. Auto stop w/micro adjustable stop Longitudinal power feed Hardened & ground table surface Chrome-plated, precision-ground quill Adjustable micrometer quill depth stop Spindle travel: 5in. Table travel (longitudinal): 33 3/4in. Table travel (cross): 15 1/2in. Max. dist. spindle to column: 24-1/2in. Max. dist. spindle to table: 17in. Knee travel: 16 3/4in. Head tilt: 45 both ways Head swivel: 90 both ways T-slots: 3 on 2 1/2in. centers, 1/2in. stud Variable speed range: 80 - 4250 RPM Power Transfer: V-belt
