1997 may "by george" mtc-52H circle shear 52" x 3/16"

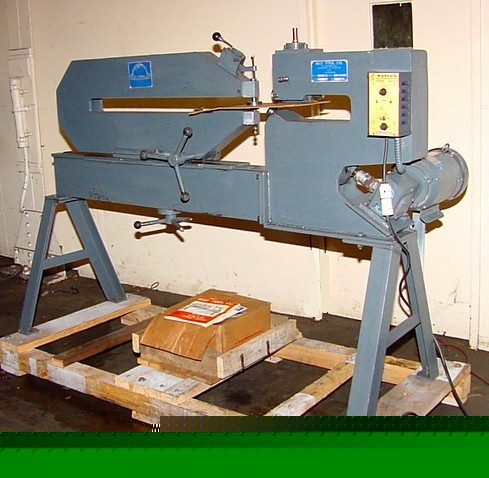

1997 MAY "BY GEORGE" MTC-52H CIRCLE SHEAR 52" x 3/16"
52" x 3/16" MAY TOOL CIRCLE SHEAR
MODEL MTC-52H S/N 1368 NEW 1997
Capacity in Mild Steel .......................... 3/16"
Capacity in Stainless Steel ..................... 10 Ga.
Circle Diameter ................................. 6"-52"
Diameter of Cutters ............................. 2-1/2"
Diameter of Flange Rollers ...................... 3"
Max. Flange Depth ............................... 1/2"
Depth Head Throat ............................... 14-1/2"
Depth of Tail Stock ............................. 37-1/2"
Gear Ratio ...................................... 5-1
Motor Horsepower ................................ 1-1/2
Cutter Speed .................................... 0-350 RPM
Voltage and Phase ..................... 220V / Single Ph
Dimensions .............................. 78 x 40 x 60 H
Rack and Pinion Gear Feed on Tail Stock for Easy Adjustment
