Square d motor starter nema sz size 2 SDG1 8536 w/encl

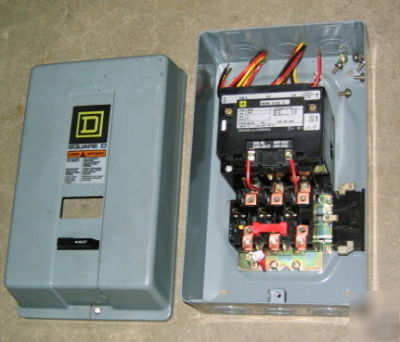

The main starter body looks New to me, and the enclosure also looks new, if it is used it was only used for a very short time, the enclosure still has all the hole knockouts in place yet and there are no marks on the paint inside to show it has ever been secured to anything. The start stop pushbutton piece appears to be used, it is resting down inside the enclosure in the photo on the right side, it is in good shape, someone must have lost the new one, but I checked it and it fits in place so it is the correct set of push buttons for this unit
Item ........................ 3 Phase Automatic Magnetic Motor Starter magnet 480 VOLT coil
Size ........................ Nema #2 8536 Type SDG1
Enclosure is 9991 SDG8 Series A
Voltage .................. 200v rated 10hp 230v rated 15hp 380v / 460v / 575v rated 25hp
Dimensions ........... approx. 7-3/4" WIDE x 12-3/4" Tall x 6" Deep Overall
on off start stop electrical switch
