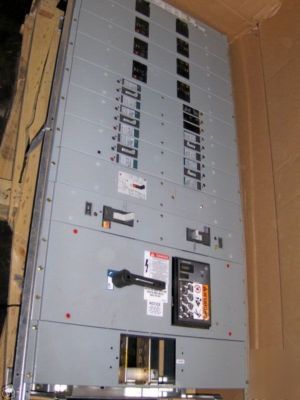

Nib b ge spectra 400 amp 3 phase panel loaded breakers
This unit is brand new never installed with a retail value of about $25,000.00
Perfect for any serious Data Center or server room or electronics shop where power surge resistance is necessary.
This is the GE Spectra Series bottom feed copper disconnect/power panel brand new in box.
Phone Frank (***)-476-7777 for faster service or questions - email may take 12 hours!!
It is located In Coquitlam BC at zip/postal code V3K 3V5
It is a 400amp 208v/120 3 phase industrial panel that retails for over $20,000.00
Plus the 3 Phase Transient Voltage Surge Suppressor worth $3800.00
It comes complete and ready to hang with the mounting box, cover and GE Main circuit breaker
The GE circuit breaker that is included is a Spectra RMS Hi-Break Circuit breaker worth $2000.00
It is 600 amp max 600 VAC~3 pole it is 10 in. tall, 5.5 in. wide, and 4 in. deep
The following breakers are installed in the panel:
2- 225 amp 3 pole breakers/switches
1- transient voltage surge suppressor
These transient voltage surge suppressors (TVSS) are engineered for reliability, flexibility and long life in the most extreme surge environment.
The true maximum surge current rating, unlimited by fusing, has been proven successful in 3rd party tests.
These devices are available in a standard NEMA 12 enclosure. Optional enclosure types include NEMA 12 and 4X, flush mount, surface mount and stainless steel.
These units have been tested to surge current ratings per NEMA LS-1, up to 200kA per mode, including the fuses in the surge path.
Standard features include a surge counter, audible alarm, indicating lights, dry contacts, and an integral surge rated disconnect**.
Rating options range from 65kA per mode to 300kA per mode.
All mode protection is provided with surge components (MOVs) connected on the phase to neutral, phase to ground, and neutral to ground paths as appropriate for the voltage configuration.
* UL Tested to 200,000 Amperes
* Integral Surge Rated Disconnect
* Tranquell ME Device is Capable of Surviving a minimum of 5,000 Category C3 Impulses (10kA, 20kV) per mode
* Tranquell HE Device is Capable of Surviving a minimum of 20,000 Category C3 Impulses (10kA, 20kV) per mode
* Device Capable of Surviving a minimum of 5,000
* Long wave (10x1000 s) Impulses per mode
* Patented Thermal Fuse Technology in combination with Surge Rated Fuses
* Form C Dry Contacts for Remote Monitoring
* Green Status Indicating Lights, Red Service Light
* Audible Alarm with Test/Disable Feature
