> Ge fire systems 103-20 pull station, single action spst
Ge fire systems 103-20 pull station, single action spst

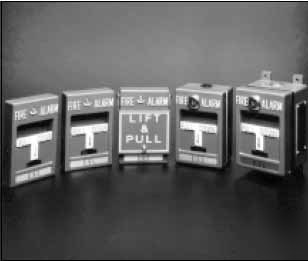

GE Security 10320 Pull Station, Fire Alarm, Single Action (SPST) Hex Reset, Metal, Red
The 10320 is a fire alarm is manually operated non-coded devices for initiating fire alarm signals. The pull handle latches until the station is reset by operating the station cover. Operation of the pull handle closes a single-pole or double-pole switch. Two wire barrier terminals are provided, each accommodating two conductors, #14 AWG or smaller. Opening the cover also closes the alarm initiating switch to allow testing.
Features: * Single action pull station
* Terminal or pigtail connection
* Semi-flush or surface mounting
* Mounting Option: Flush Standard Outlet Box with one device cover at least 13/4" deep.
* Presignal Key Operated: Removable in either position
* Relay @ Contact Rating: 10.0 A @ 125.0 V
