Met one water grab sampler, model wgs-267

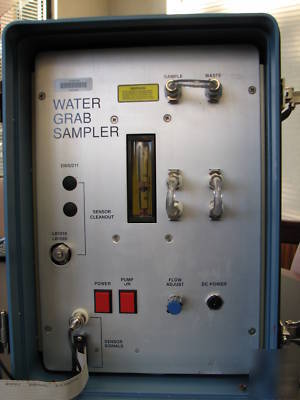

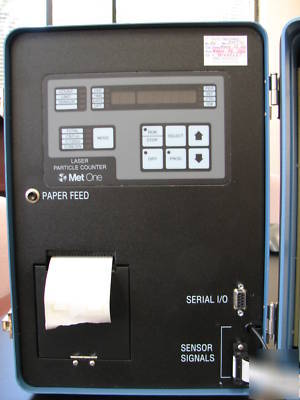

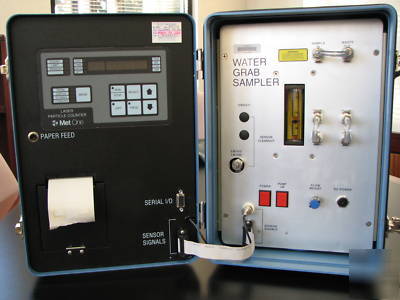

The sampling components are located on the right-side panel of the WGS-267. This panel contains the sampling tube ports, DC pump, batteries, flow control, flow meter, and particle counting sensor. All electronic components are located on the left (lid) side of the WGS-267. Particle count results are sorted into proper size ranges, then displayed, logged, and printed.
Counts particles in six size ranges
Built-in printer for on-site results
Spreadsheet compatible data with Particle Vision PortAll software
Built-in printer and a direct readout of particle counts in six size ranges make the WGS267 ideal for measuring drinking water filter performance in the pipe gallery or in the lab. Because the WGS267 is battery powered, simply drop the sample tube into your grab sample, start the pump, and set the flow. Particle counts are then displayed automatically in a variety of formats.
Sample from tanks, open streams, piping, and jars. Print results on-the-spot. Produce graphs, tables, and spreadsheet reports.
Every part of this sampler/counter is rugged. Configuration and data communication are accomplished with the RS485 interface, allowing the unit to function either stand-alone (logging data for post analysis) or tied into a computer running Met One s water grab-sampling software.
Flow Rate 20 120 ml/minute (100 ml/minute, typical)
Connection 0.25" tubing, quick connection
Size Ranges/Channel 2, 3, 5, 7, 10, 15 microns (other ranges available, specify at time of order)
Locations 999 different location IDs
Sample Frequency 1 second 24 hours
Display Modes counts, counts/ml, counts/100 ml, rate
Dimensions 10" W x 12" H x 14" D
Battery Power 3 hours, typical
Manual and power supply included.
