Cincinnati sub-zero csz ct-64 temperature test chamber

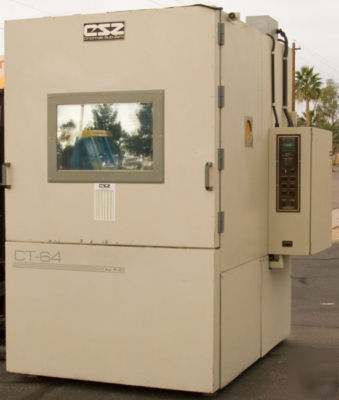

Cincinnati Sub-Zero CT-64-10-10-S-W/C Environmental Temperature Test Chamber
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Cincinnati Sub-Zero and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The units are guaranteed to work, removed from service from a highly maintained process.
The Unit's Model Number Tag Reads:
Model Number: CT-64-10-10-S-W/C
* Watlow F4 Microprocessor temperature controller with 255+ Segments
* Digital Display Limit & Alarm
* Port, LH Side Wall, 2.875" (73.025 mm) Diameter (This unit actually has ports on the left and right and they are probably 4 - 5" in diameter)
* Main Power Disconnect Switch
* Viewing Window, 16.5" x 25.5"
Optional Equipment Installed:
* Reversible Door Hinges to be Opened Up from Either Side
Product Line: CT (Non-Humidity)
Cubic Feet of Chamber Interior: 64 cubic feet
H.P. Rating of Primary Cooling System: 10 HP (Part of Cascade)
Compressor Type: Semi-Hermetic
Work Space Dimensions: 48" W x 48" D x 48" H
Exterior Dimensions: 71" W x 87" D x 102" H
Temperature Range: -73 C to +190 C (-100 F to +375 F)
Control Stability: 1 C ( 2 F)
Cooling Performance with Empty Chamber: From 75 F to:
Heating Performance with Empty Chamber:
* Picture 5 - Main Controls #1
* Picture 6 - Main Controls #2
* Picture 7 - GPIB Communication Port
