6997 htc johansson 10400 radial arm drill 4' x 12"

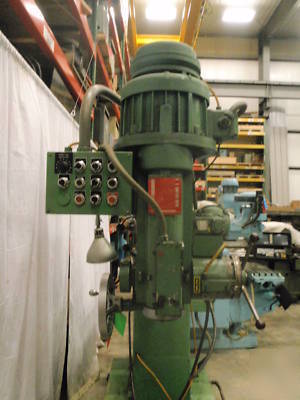

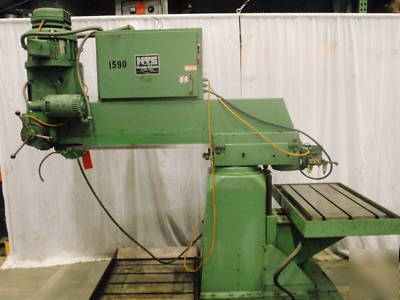

HTC (JOHANSSON) MODEL 10400 4 x12 HEAVY DUTY RADIAL DRILL
Max workpiece dia at table and base 8
Spindle to face of column at table & base 7 min, 48 max
Spindle radius 58 max, 18 min
Horizontal travel of head on ram 41
Table to spindle 4 min (spdl retracted)
Base to spindle 32 min (spdl extended)
Table working surface 19 x34
Spindle power feed (infinitely variable) 0-12 min
Length of column bearing in housing 20
Length of knee bearing on machine way 18
Floor to top of head (max) 94
