2-ton gaylord dumper, 60" dump height

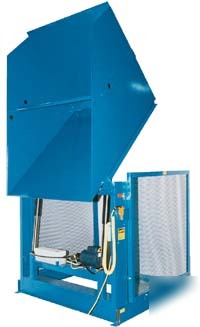

2-TON GAYLORD DUMPER, 60" Dump Height
Model Number For This Listing: HBD-4-60-GL
2-TON GAYLORD DUMPER, 60' Dump Height
This excellent Gaylord Dumper will provide long lasting durability to dump your Gaylord boxes.
This custom Gaylord configuration is made to hold 48" high Gaylord boxes with or without a pallet (48" and 54" bar heights). The chute width is 52" and can hold wider boxes or containers if necessary. The dump height for this Gaylord dumper is 60" at the edge of the chute when dumping as it is rotated up (the total rotated height of the unit is 148"). This model hydraulic Gaylord Dumper has a total capacity of 4,000 lbs. Level height prior to rotation is 77".
The lowered height of the Gaylord Dumper is 1/2" to allow for pallet truck loading and unloading.
Maximum rotation the hydraulic Gaylord Dumper is 135 . The Internal 2HP power unit and hand held control are standard. Foot control is also available. Protective mesh side screens included. Heavy-duty welded steel construction. The Gaylord Dumper has a painted blue finish.Gaylord Dumper Model Number: HBD-4-60-GL
This Gaylord Dumper is a custom unit and is Non-Returnable. Production Lead Time for this unit is 20 Business Days - Made-to-Order. Price does not include freight. Call 1-(***)-424-4908 for freight quote or request quote at ****@hayestrading.com.
