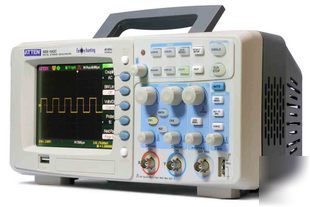

Atten ADS1102C 100 mhz 2 ch 50M sa digital oscilloscope
Ultra thin outward appearance design and internationalization research and development idea made ADS1000 series products with more powerful performance and more friendly operation.
The ADS1000 series product volume exquisite, operation is flexible; Colored TFT LCD display and Pop-up menu pattern manifests its user friendly; Rich trigger ways can meet a user more extensive need; Multiple Languages User Interface will be develop the ADS1000 series product international market.
ADS1000 Series Characteristic:
The volume exquisite and it is convenient for carrying;
Used Colored TFT LCD, the waveform display is clearer and stable;
Dual channel-channel bandwidth 25MHZ-100MHZ;
The real time sampling rate is 500MSa/s;
Memory depth of ADS1000 is 4K and that of ADS1000M is 2M
Trigger Models: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes;
Unique Digital Filter function and Waveform recorder function;
Thirty two parameters Auto measure function;
Cursor measure covers Manual mode, Track mode and Auto mode;
Channel waveform and its FFT waveform display on split screen;
Pop-up Menu display pattern is more convenient for users using it;
Multiple Language User Interface;
Support multilingual online help system;
ADS1000 series products have rich trigger modes: Edge, Pulse, Video, Slope, Alternative and delay trigger mode, which satisfy with users more extensive needs. Alternative trigger mode is usually used to observing two non-correlated signals at the same time and users can select different trigger mode for two channels, which is a kind reproduction that analog oscilloscope function in the digital oscilloscope.
FFT wave form and its Channel waveform can display on split screen at the same time. In split display mode, the screen is divided eight divides in vertical direction. That is similar to under the entire screen pattern simultaneously to observe two waveforms. This way will make users observe waveforms to be clearer and convenient.
Multi-country Language User Interface Display Function
ADS1000 series product has 11 languages user interface display function: Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese and Korean, which has further developed the ADS1000 series product international market and has laid the foundation for ADS1000 series making for the international well-know brand products
ADS1000 series can auto measure thirty two parameters, which is most in the same level digital oscilloscopes. Auto measure function can eliminate user error consumedly, and more accurately using it. ADS1000 series also have all measurement function that displays all the waveform parameters on the screen according to measure kinds, and users can ready measure parameters value expediently. So ADS1000 series are your most perfect measure tools in current market.
ADS1000 series cursor survey function has three kind modes: Auto manual mode, Track mode, Auto mode. The user may according to own need to choose the survey pattern nimbly, thus with ease read measure results from the top right of the screen or experience completely automatic intelligent design pattern
ADS 1000 series provide a digital filter function and users can use it setting upper limit and lower limit of frequency to reduce signal noise and filter error signal. So they can observe their interested signal., which will advance users work efficiency consumedly
Using this function, users can continue record data of their need signals as the form of frame. Waveform recorder can record input waveform from CH1 and CH2, with maximum record length of 1500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping and eye watching it.
ADS1000 series products use the colored TFT LCD. The screen display parameter value and the waveform are clearer, stably and nature; That is also more advantageous to alleviate tiredness of users using the instrument extended periods at a time
Powerful EasyScope3.0 Software
Common Specifications of ADS1000 Series
Window: Hanning, Hamming, Blackman, Rectangular
100-240VAC, 47HZ-440HZ, 50VA Max
(1:1, 10:1)Problex2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual,
