> Pelco CX9504RX rs-485 coaxitron receiver full ptz

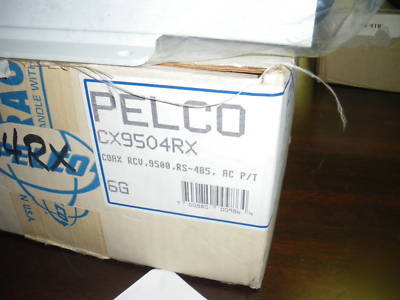

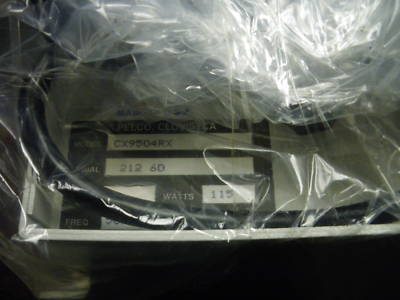

Pelco CX9504RX rs-485 coaxitron receiver full ptz
Indoor / Outdoor Coaxitron Receiver

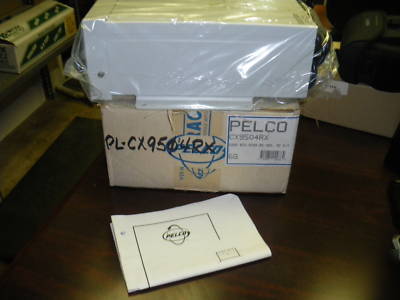

***Comes with Installation Manual***
The CX9500 Series Coaxitron receiver operates all of Pelco s fixed speed pan/tilts and domes with preset positioning. For pan/tilts and domes without preset positioning, refer to the IRD/ERD2000 Series receiver. Standard features include pan/tilt control, camera power, lens control (zoom, focus, and iris), preset positioning, and an open collector transistor (latching) output for manual override of an automatic iris control. Depending on the model, input voltage is either 120 or 230 VAC, and output voltage for camera and pan/tilt power can be either 24, 120, or 230 VAC.
* Coaxitron Compatible, Fixed Speed
* 8 programmable auxiliary functions
* Adjustable Lens Control (Zoom, Focus, Iris)
* 24 VAC 120 VAC and 230 VAC camera voltages
* Self test diagnostics built into firmware
