New * * allen bradley 1746-NI4 /a 1746NI4 1746-N14 analog
Rockwell Automation > PLC & HMI > I/O Products > SLC 500 > 1746-NI4/A
Allen Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module, 4 Point, Series A
1746-NI4 SLC 500 Analog Input Module, Number of Inputs: 4 Analog Inputs 10V DC or 20 mA; Current Loop Input Range 20 mA (nominal), 30 mA (maximum); Current Loop Input Coding 16,384 for 20mA; Absolute Maximum Input Voltage 7.5V DC or 7.5V AC RMS; Nominal Input Impedance 250 ; Voltage Input Range 10V DC -1 LSB; Voltage Input Impedance: 1M ; Overvoltage Protection (IN+ to -IN): 220V DC or AC RMS continuously; Backplane Current: 25mA @ 5V, 85mA @ 24V; Resolution (bits), Max: 16.
Allen Bradley 1746-NI4 Analog Input module contains 4 analog input channels that are user selectable per channel for voltage or current to support a variety of controlling applications. The 1746-NI4 has 4 individual DIP switches that control the input mode of input channels 0-3. A switch in the ON position configures the channel for current input, in the OFF position configures for voltage input. Inputs are filtered to reject high frequency noise and provide 14- to 16-bit (range-dependent) resolution.

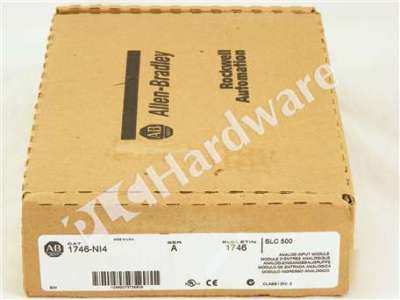

One New Open Box Allen Bradley 1746-NI4 Series A, SLC 500 High Resolution Analog Input Module, 4 Point.
