Kramer vp-4X8 computer graphics matrix swtich vga xga

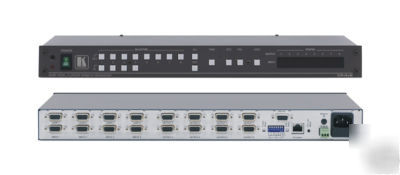

The VP-4x8 is a high-performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher on 15-pin HD connectors. The unit can route any or all inputs to any or all outputs simultaneously.
* High Bandwidth - 350MHz (-3dB).
* DC Coupled Inputs & Outputs.
* Take Button - Execute multiple switches all at once.
* Memory Locations - Store multiple switches as presets to be recalled and executed when needed.
* Delayed Switching - 0-3.5s. Switches sync ahead of video to provide near glitch-free switching of non-genlocked sources.
* Flexible Control - Front panel, RS-232 (K-Router Windows -based Kramer software is included), RS-485, IR remote (included) and Ethernet.
* Active Input Indication Reporting - Each input button on the front panel automatically lights up when the unit detects that a video signal is connected to an input.
* Front Panel Control Lockout.
* Standard 19" Rack Mount Size - 1U.
