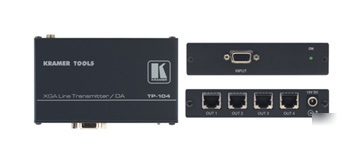

Kramer tp-104HD xga line transmitter / 1:4 da
Manufacturer: Kramer Electronics Model/Part #: TP-104HD
The TP-104HD is a twisted pair transmitter for computer graphics signals. It converts a computer graphics video signal into 4 twisted pair signals.
* Max Resolution - WXGA & 1080p.
* Twisted Pair Outputs - RJ-45 connectors.
* Power Connect System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source when the devices are within 50m (150ft) of each other.
* Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
* System Range - Up to 100m (320ft).
* Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Compatible Receivers: TP-220HD , TP-202 , TP-105HD , TP-126 , TP-120 , VS-81ETH , TP-105 , TP-124 , TP-122 , PT-120 , VP-5R
This product replaces the TP-104
